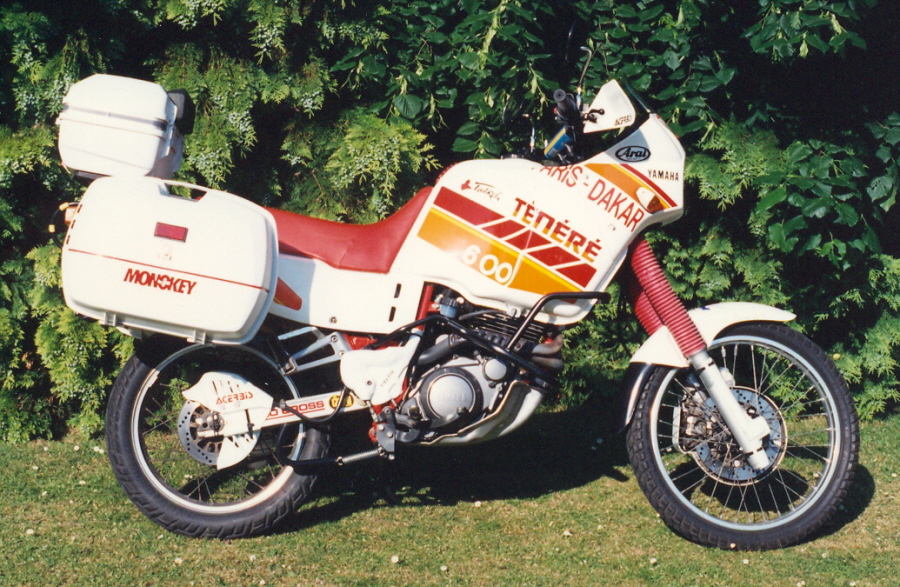

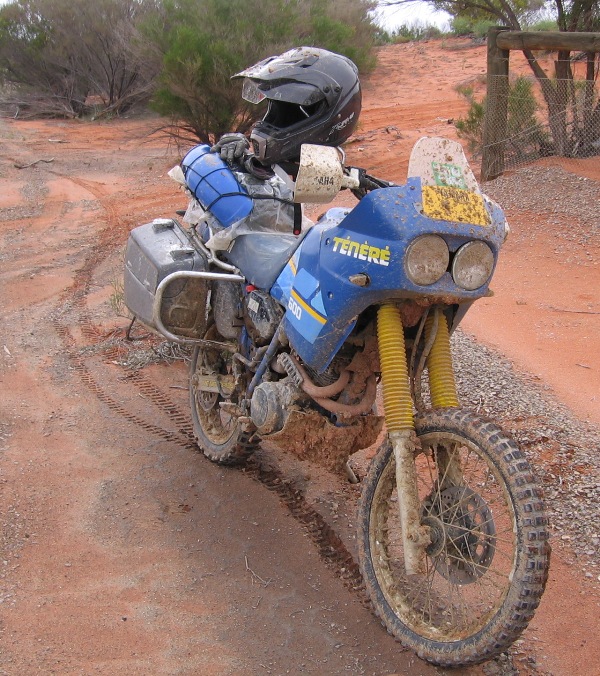

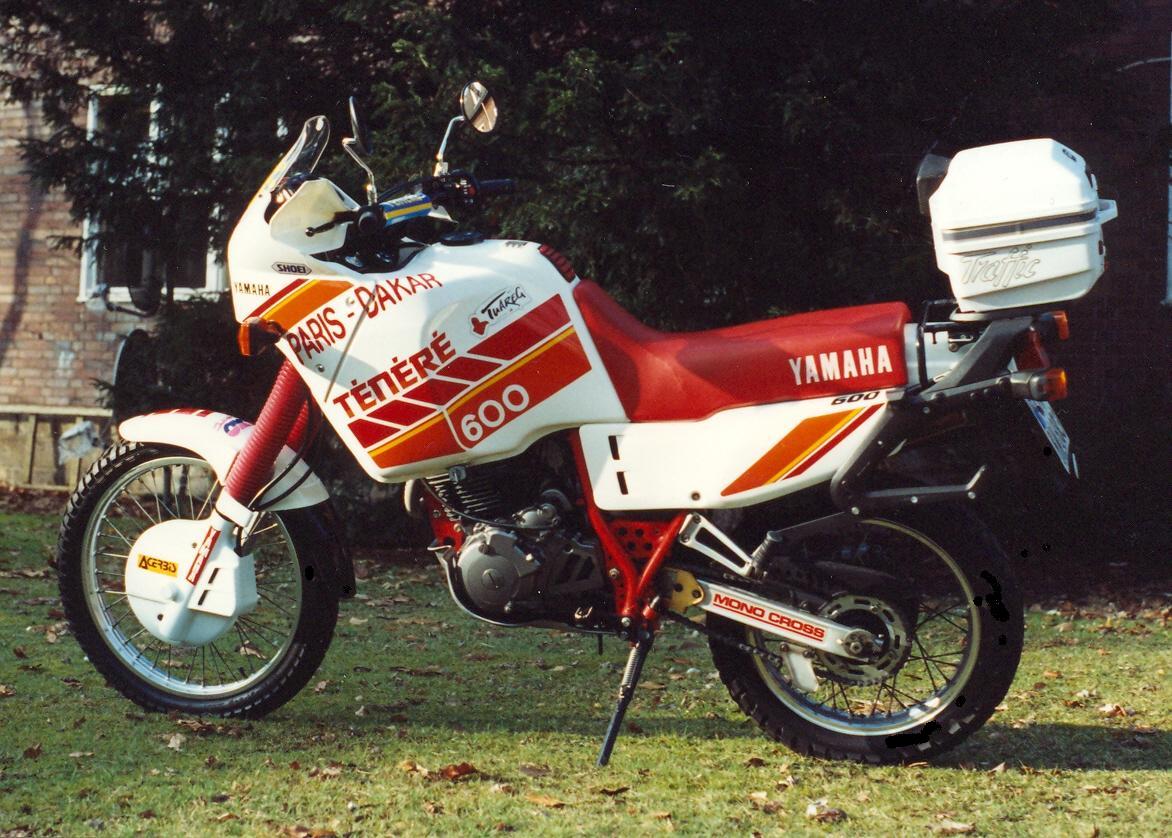

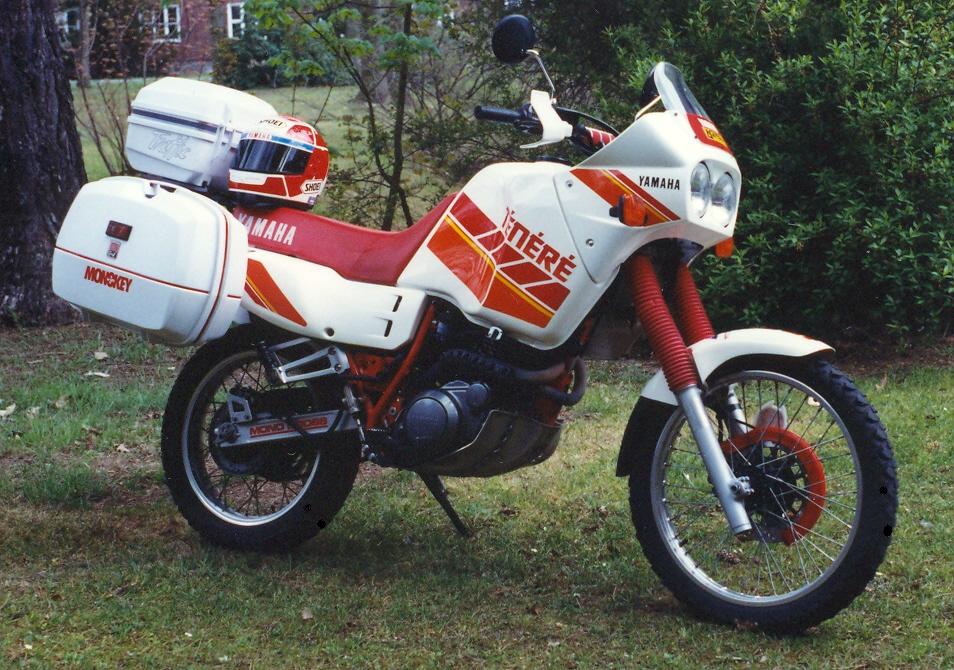

Yamaha - XT 600 ZE Tenere - Rear Brake Disc 89

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
600
XT 600 ZE Tenere - Rear Brake Disc Parts and accessories

Service

Chain Freeplay mm:
30 - 40
Engine Oil Classification API:
SE
Engine Oil Grade SAE:
20w/40
Engine Oil quantity with filter (litres):
2.4
Float Height:
25 - 27
Fork oil grade:
10W
Front Fork Oil cc (left leg):
493
Front Fork Oil cc (right leg):
493
Idle Speed (rpm):
1250 - 1350
Spark Plugs Gap (mm):
0.8 - 0.9
Tyre Pressure Back Bar / psi:
26
Tyre Pressure Front Bar / psi:
21
Valve Clearance Cold - Exhaust:
0.12 - 0.17
Valve Clearance Cold - Inlet:
0.07 - 0.12

Brakes

Front:
Disc
Rear:
Disc
Brake fluid:
DOT 3
Front Disc Size:
267 x 4 mm
Front Drum Size:
-
Front-Pistons-per-caliper:
38,1
Rear Disc Size:
220 x 5 mm
Rear Drum Size:
-
Rear-Pistons-per-caliper:
34,9

Dimensions

Dry Weight:
160 kg
Fuel Capacity:
24 lt
Height:
1,340 mm
Length:
2,210 mm
Seat Height:
890 mm
Wet Weight:
185 kg
Width:
835 mm

Electrics

Battery:
GM12AZ
Ignition:
CDI Magneto
Spark Plugs:
NGK DPR7EA-9

Engine

Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
95 x 84 mm
Carburation:
TEIKEI-Y 27 PV
Carburation Idle Jet:
46
Carburation Main Jet:
120 - 125
Displacement:
595 cc
Fuel Minimum Octane Rating:
95
No. of Valves:
4
Pilot Screw Setting:
1.5

Transmission

Chain Number of Links:
103
Chain type:
DID520vc
Gear Ratio 1st:
2.583
Gear Ratio 2nd:
1.588
Gear Ratio 3rd:
1.200
Gear Ratio 4th:
0.954
Gear Ratio 5th:
0.794
Gear Ratio 6th:
-
Sprocket front:
15
Sprocket rear:
39

Misc.

Colour Options:
Faraway Blue - White
Motorcycle Style:
Dual Sport/Adventure

Tyres

Front:
300-21 Tubed
Rear:
460-18 Tubed
