Spec Sheet
The information below is specific to the Yamaha - XTZ690 Tenere 700 (BW31) 19, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

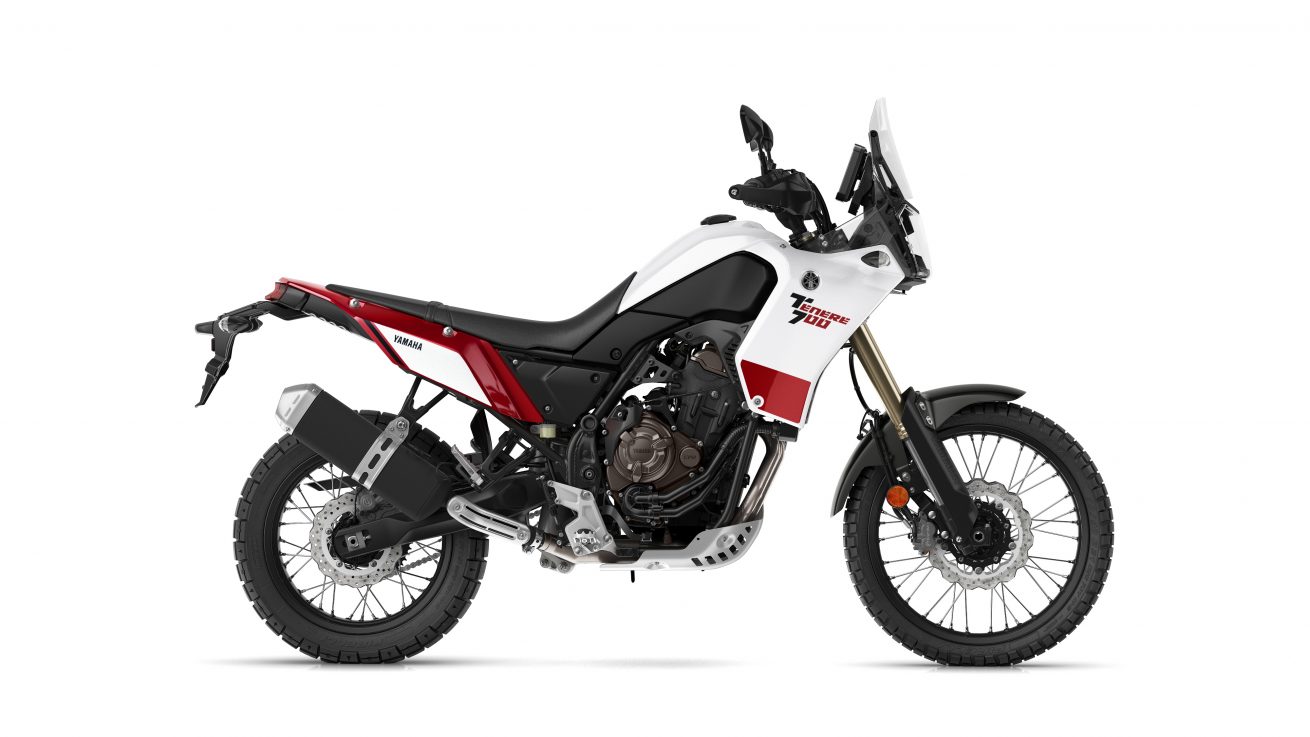

Back.Yamaha - XTZ690 Tenere 700 (BW31) 19
Bike Info
CC:
689
Brakes
Front:
Twin Disc
Rear:
Disc
Front Disc Size:
282 mm
Front Drum Size:
245 mm
Dimensions
Fuel Capacity:
16 L
Ground Clearance:
240 mm
Height:
1455 mm
Length:
2370 mm
Seat Height:
875 mm
Wet Weight:
204 kg
Wheelbase:
1595 mm
Width:
910 mm
Electrics
Voltage:
12v
Ignition:
TCI
Spark Plugs:
LMAR8A-9
Engine
Type:
Liquid Cooled 4 Stroke DOHC Parallel Twin
Bore x Stroke:
80.0 mm x 68.6 mm
Compression Ratio:
11.5:1
Lubrication System:
Wet sump
No. of Valves:
4
Starting:
Electric
Transmission
Chain Number of Links:
122
Chain type:
525
Clutch Type:
Wet, Multiple Disc
Final Drive:
Chain
Transmission:
Constant Mesh, 6-speed
Misc.
Frame:
Steel tube backbone, Double cradle
Fuel Control:
Fuel Injection
Power
Max Power Output:
54 kW @ 9000 RPM
Max Torque:
68 Nm @ 6500 RPM
Suspension
Front:
Upside down telescopic fork
Front Travel:
210 mm
Rear:
Swingarm, (Link type suspension)
Rear Travel:
200 mm
Tyres
Front:
90/90 R21 M/C 54V M+S
Rear:
150/70 R18 M/C 70V M+S
