Spec Sheet
The information below is specific to the Yamaha - XT 600 E 00, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

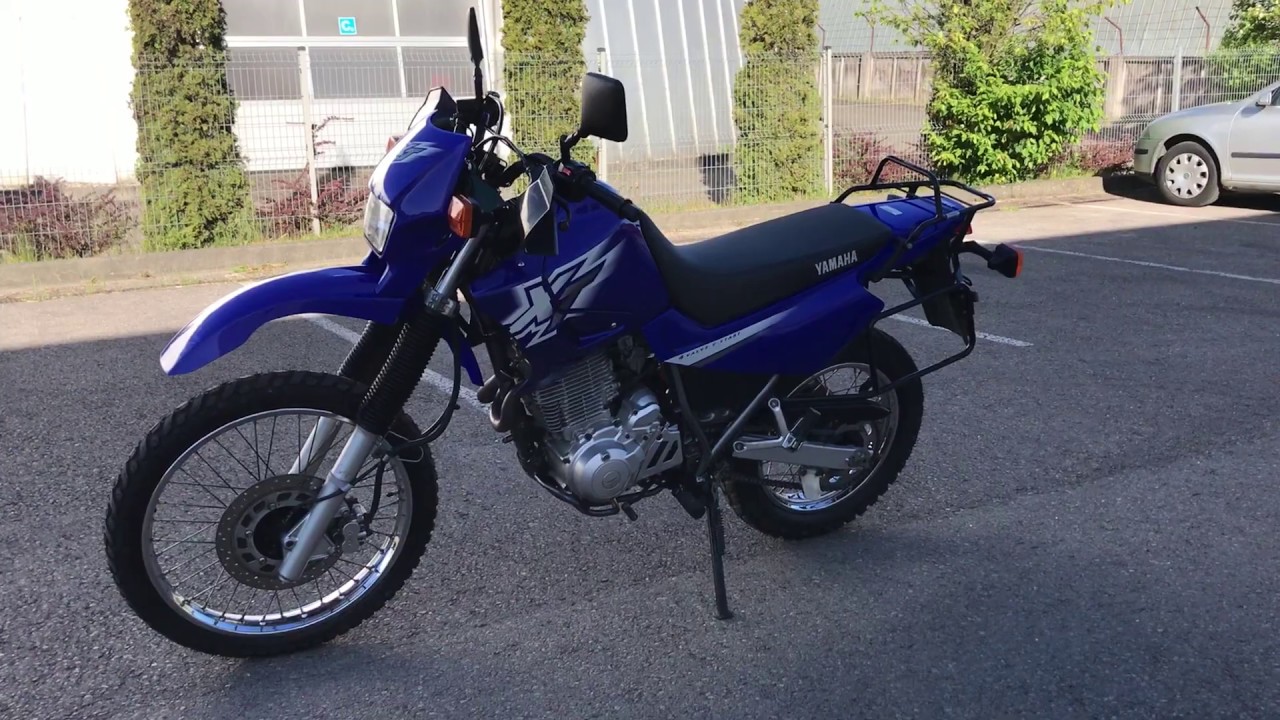

Back.Yamaha - XT 600 E 00
Bike Info
CC:
600
Service
Engine Oil Classification API:
SE, SG
Engine Oil Grade SAE:
10W40
Engine Oil quantity (litres):
3,3
Engine Oil quantity with filter (litres):
2,8
Spark Plugs Gap (mm):
0.8-0.9
Tyre Pressure Back Bar / psi:
1.5 bar (2.25<90Kg load)
Tyre Pressure Back - Pillion Bar / psi:
1.5 bar (2.25<90Kg load)
Tyre Pressure Front Bar / psi:
1.5 bar
Tyre Pressure Front - Pillion Bar / psi:
1.5 bar
Brakes
Front:
Disc
Rear:
Disc
Brake fluid:
DOT4
Front Disc Size:
267mm
Front-Pistons-per-caliper:
2
Rear Disc Size:
220mm
Rear-Pistons-per-caliper:
1
Dimensions
Dry Weight:
156 kg
Fuel Capacity:
15 liters
Ground Clearance:
230mm
Height:
1205mm
Length:
2200mm
Reserve Fuel Capacity:
2 liters
Seat Height:
855mm
Wet Weight:
176 Kg
Wheelbase:
1440mm
Width:
865mm
Electrics
Voltage:
12v
Battery:
YTX9-BS
Bulb-Headlight:
12V-60/55W
Ignition:
T.C.I. (digital)
Spark Plugs:
DPR8EA-9
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
95,0x84,0
Compression Ratio:
8,5:1
Displacement:
595cc
No. of Valves:
4
Starting:
electric
Transmission
Final Drive:
chain
Transmission:
5 Speed
Power
Fuel Consumption:
18,5 Km/Lit
Max Power Output:
45 Hp / 32.8 Kw @ 6500 rpm
Max Torque:
50 Nm/5,1 Kg-m @ 5500rpm
Power/Weight Ratio:
0.2564 HP/kg
Standing 1/4 mile:
14.0 sec/147.6 Km/h
Top Speed:
165 Km/h
Suspension
Front:
41mm Telescopic forks
Front Travel:
225mm
Rear:
Monocross
Rear Travel:
200mm
Tyres
Front:
90/90-21 54S (TW47)
Rear:
120/90-17 54S (TW48)
Wheels
Front:
21x1,85
Rear:
17xMT2,50
Add information to the model
