Spec Sheet
The information below is specific to the Yamaha - XJ6 S Diversion (Non ABS) 09, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

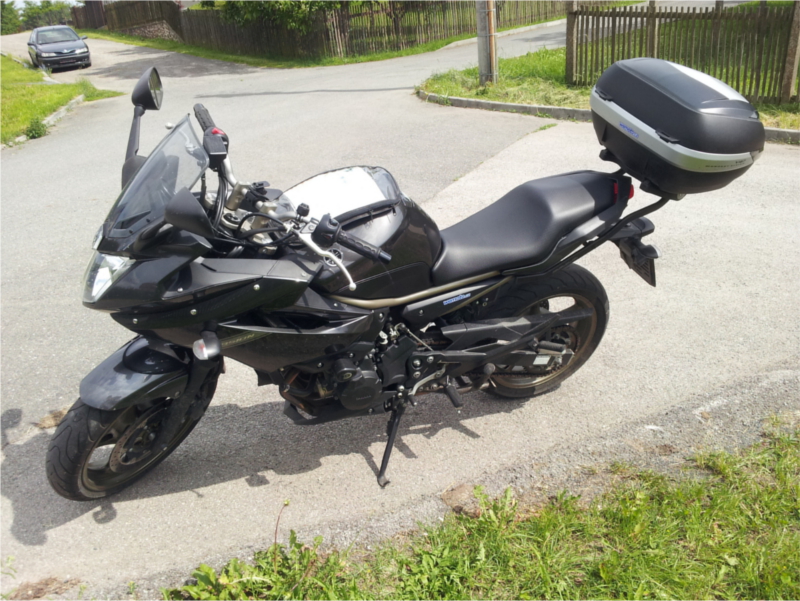

Back.Yamaha - XJ6 S Diversion (Non ABS) 09
Bike Info
CC:
600
Service
Cooling System (litres):
2 Litres
Engine Oil Classification API:
SG-
Engine Oil Grade SAE:
10W30, 10W40, 15W40, 20W40, 20W50
Engine Oil quantity (litres):
2.5 Litres
Engine Oil quantity with filter (litres):
2.80 Litres
Brakes
Front:
Twin Disc
Rear:
Disc
Brake fluid:
DOT 4
Front Disc Size:
298 mm
Rear Disc Size:
245 mm
Dimensions
Dry Weight:
205 Kg
Fuel Capacity:
17.3 Litres
Ground Clearance:
140 mm
Height:
1210 mm
Length:
2120 mm
Reserve Fuel Capacity:
3,2 Litres
Seat Height:
785 mm
Trail:
103.5 mm
Wet Weight:
211 Kg
Wheelbase:
1440 mm
Width:
770 mm
Electrics
Voltage:
12v
Battery:
YT12B
Main Fuse:
30.0 A
Spark Plugs:
NGK/CR9E
Engine
Type:
Liquid Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
65.5 x 44.5 mm
Compression Ratio:
12.2:1
Displacement:
600 cc
Lubrication System:
Wet sump
Transmission
Final Drive:
Chain
Gear Ratio 1st:
37/13 (2,846)
Gear Ratio 2nd:
37/19 (1,947)
Gear Ratio 3rd:
28/18 (1,556)
Gear Ratio 4th:
32/24 (1,333)
Gear Ratio 5th:
25/21 (1,190)
Gear Ratio 6th:
26/24 (1,083)
Primary Drive Ratio:
86/44 (1,955)
Transmission:
Constant mesh, 6-speed
Misc.
Motorcycle Style:
ROADSTER
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
160/60-ZR17 Tubeless
