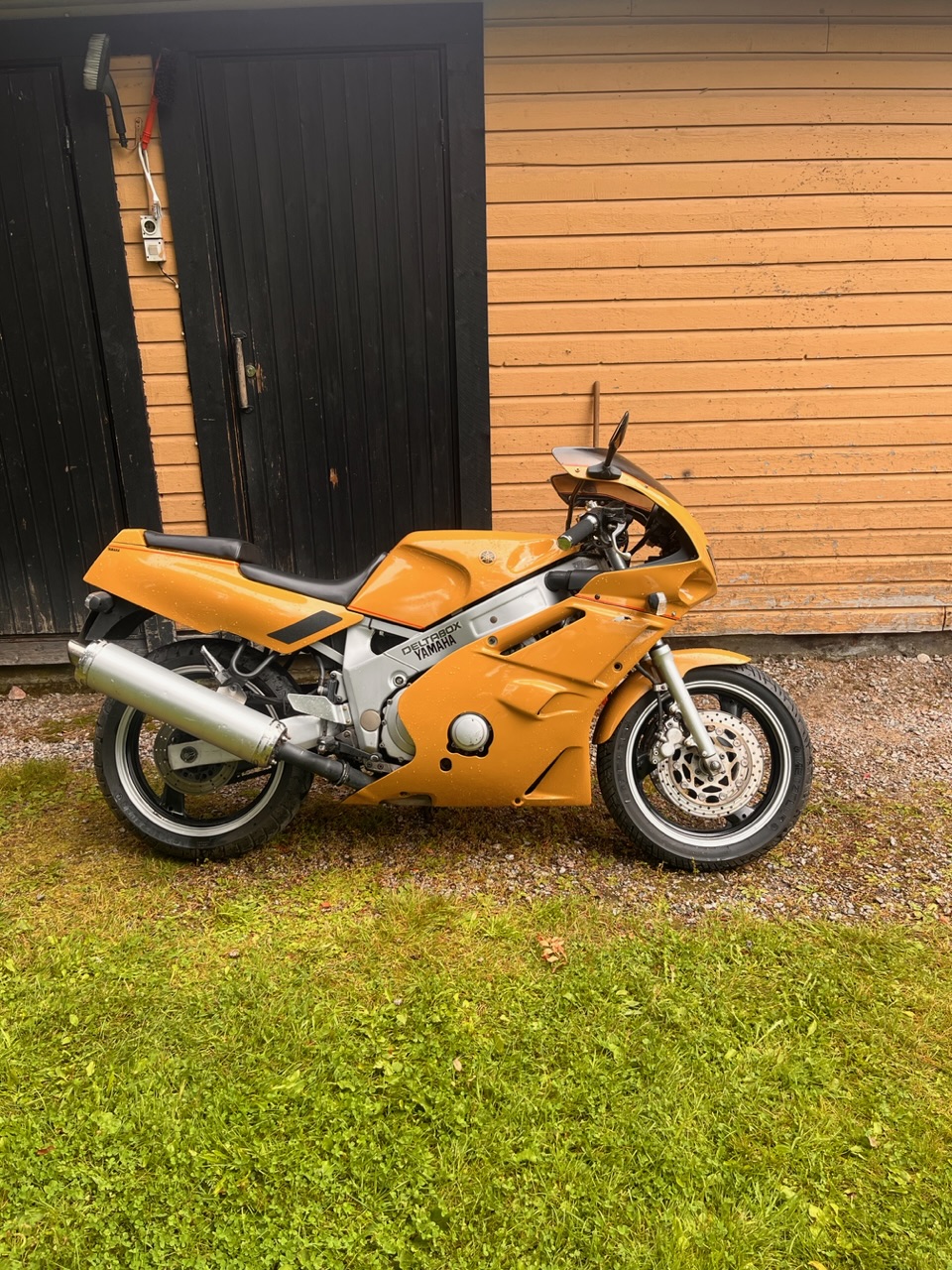

Yamaha - FZR 600 (3HE) 91

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
600
FZR 600 (3HE) Parts and accessories

Service

Chain Freeplay mm:
20-30 mm
Coolant:
50/50 anti freeze/ water mix
Cooling System (litres):
2.2
Engine Oil Classification API:
se
Engine Oil Grade SAE:
20w/40
Engine Oil quantity (litres):
2.3
Engine Oil quantity with filter (litres):
2.6
Fork oil grade:
10w
Front Fork Oil cc (left leg):
435
Front Fork Oil cc (right leg):
435
Idle Speed (rpm):
1150 - 1250
Spark Plugs Gap (mm):
0.7 - 0.8 mm
Tyre Pressure Back Bar / psi:
2.5 bar / 36psi
Tyre Pressure Back - Pillion Bar / psi:
2.9 bar / 42 psi
Tyre Pressure Front Bar / psi:
2.25 bar / 33psi
Tyre Pressure Front - Pillion Bar / psi:
2.5 bar / 36 psi
Valve Adjustment Interval:
16000 miles (24000 kms)
Valve Clearance Cold - Exhaust:
0.21-0.30
Valve Clearance Cold - Inlet:
0.11-0.20

Brakes

Front:
Twin Disc
Rear:
Disc
Front Disc Size:
298 mm
Front-Pistons-per-caliper:
4
Rear Disc Size:
245 mm
Rear-Pistons-per-caliper:
2

Dimensions

Fuel Capacity:
18 L (4 Imp. Gals.)
Ground Clearance:
135 mm
Height:
1155 mm
Length:
2095 mm
Rake:
25*
Reserve Fuel Capacity:
3.4 L (.8 Imp. Gals.)
Seat Height:
785 mm
Trail:
94 mm
Wet Weight:
201kg
Wheelbase:
1425 mm
Width:
700 mm

Electrics

Voltage:
12v
Battery:
GM12AZ
Bulb-Headlight:
55w - 60w H4
Charging System:
AC Magneto
Ignition:
TCI Digital
Spark Plugs:
NGK CR9E or CR8E

Engine

Type:
Liquid Cooled 4 Stroke DOHC Inline Four
Air Filtration:
Dry Element
Bore x Stroke:
59 x 54.8 mm
Carburation:
Mikuni
Carburation Idle Jet:
30
Carburation Main Jet:
107.5
Compression Ratio:
12:1
Displacement:
599 cc
Firing Order:
1 3 4 2
Fuel Minimum Octane Rating:
95
Lubrication System:
Wet Sump
No. of Valves:
16
Pilot Screw Setting:
2.5 - 3.00
Red line RPM:
11,500
Starting:
Electric
Valve Train:
Bucket cam followers shim adjustable

Transmission

Chain Number of Links:
106
Chain type:
did50va6
Clutch Type:
Wet Multi plate
Final Drive:
3.00:1
Gearchange Pattern:
1 N 2 3 4 5 6
Gear Ratio 1st:
2.846:1
Gear Ratio 2nd:
1.947:1
Gear Ratio 3rd:
1.550:1
Gear Ratio 4th:
1.333:1
Gear Ratio 5th:
1.192:1
Gear Ratio 6th:
1.111:1
Primary Drive:
Spur gear
Primary Drive Ratio:
1.708:1
Sprocket front:
15
Sprocket rear:
45
Transmission:
6 Speed Constant mesh

Misc.

Exhaust:
4 into 1
Frame:
Double cradle Delta box
Motorcycle Style:
Sports
Place of Manufacture:
Japan
Swing Arm:
Delta box

Power

Max Power Output:
66.8kw(90.9hp) @ 10500 rpm

Suspension

Front:
Telescopic forks
Front Travel:
130 mm (5.1")
Rear:
Monoshock with adjustable preload
Rear Travel:
115 mm (4.5")

Tyres

Front:
110/70-ZR17 Tubeless
Rear:
140/60-H18 Tubeless

Wheels

Front:
3 Spoke alloy
Rear:
3 Spoke alloy
