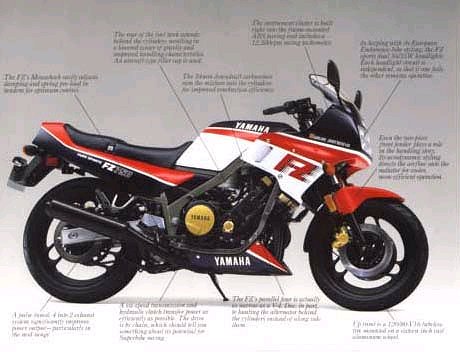

Yamaha - FZ 750 85

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
750
FZ 750 Parts and accessories

Service

Valve Clearance Cold - Exhaust:
0.21-0.30
Valve Clearance Cold - Inlet:
0.11-0.20

Brakes

Front:
Twin Disc
Rear:
Disc

Electrics

Voltage:
12v
Spark Plugs (Iridium):
NGK DR8EIX

Engine

Type:
Liquid Cooled 4 Stroke DOHC Four
Bore x Stroke:
68 x 51.6 mm
Displacement:
749 cc
Firing Order:
1-2-4-3
No. of Valves:
20 (5 per cylinder)
Starting:
Electric


Transmission

Chain Number of Links:
110
Clutch Type:
Wet Multiplate
Sprocket front:
16
Sprocket rear:
43
Transmission:
6 Speed

Misc.

Frame:
Steel box section
Motorcycle Style:
Race
Place of Manufacture:
Japan
Swing Arm:
Alloy box section

Suspension

Rear:
Mono shock

Tyres

Front:
120/80-V16 Tubeless
Rear:
130/80-V18 Tubeless

Wheels

Front:
16
Rear:
18
