Spec Sheet
The information below is specific to the Yamaha - XT 600 83, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

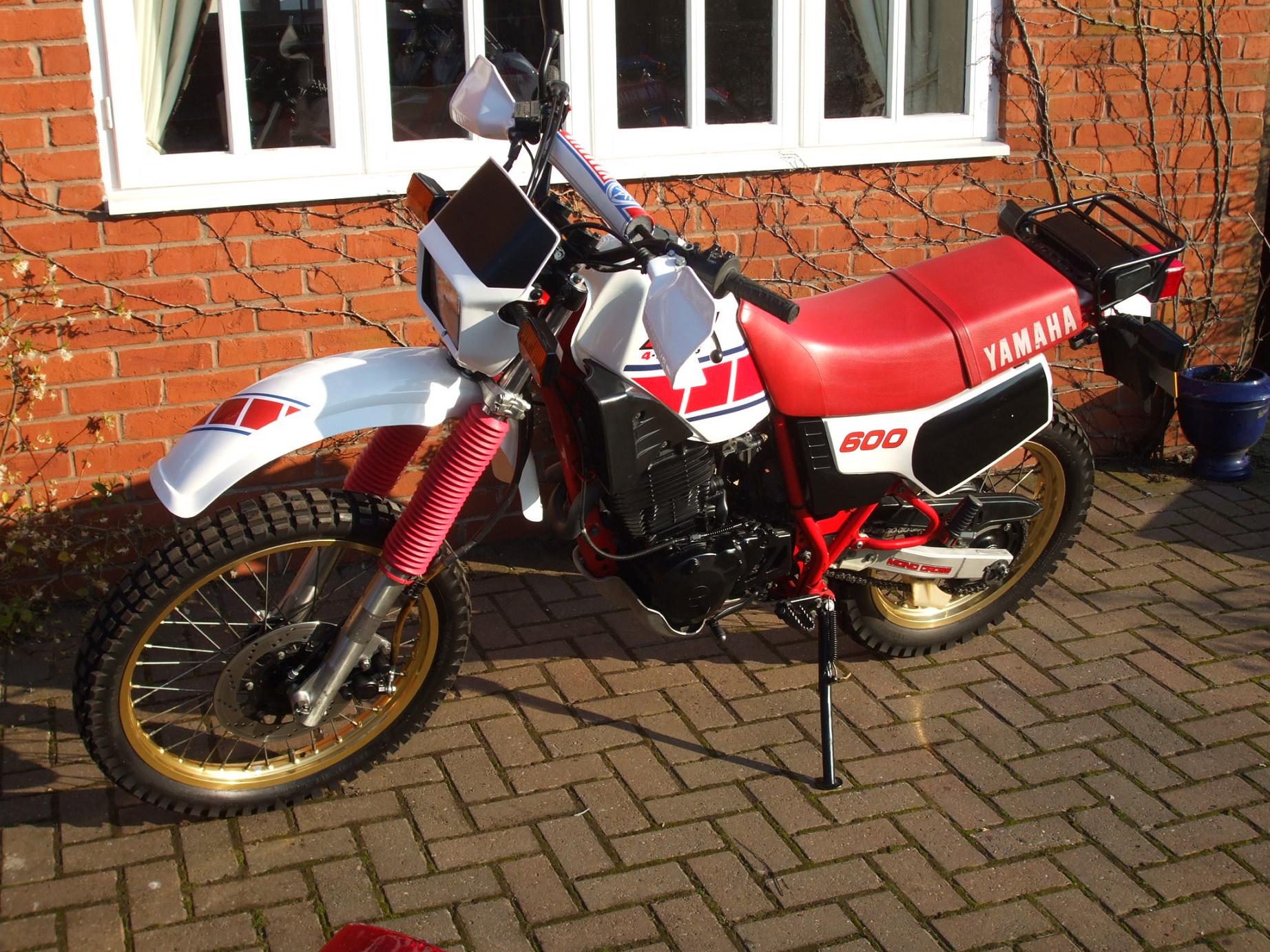

Back.Yamaha - XT 600 83
Bike Info
CC:
600
Service
Chain Freeplay mm:
30 - 40
Engine Oil Classification API:
SE
Spark Plugs Gap (mm):
0.6 - 0.7
Valve Clearance Cold - Exhaust:
0.12-0.17
Valve Clearance Cold - Inlet:
0.05-0.10
Brakes
Front:
Disc
Rear:
Drum
Front Disc Size:
267mm
Rear Drum Size:
150mm
Electrics
Spark Plugs (Iridium):
NGK DPR8EIX-9
Engine
Type:
Air Cooled SOHC Single
Bore x Stroke:
95 x 84 mm
Compression Ratio:
8:5:1
Displacement:
595 cc
No. of Valves:
4
Transmission
Chain Number of Links:
104
Final Drive:
Chain
Sprocket front:
15
Sprocket rear:
40
Misc.
Fuel Control:
SOHC
Motorcycle Style:
Dual Sport/Adventure
Power
Max Power Output:
45HP (34KW @ 6500 RPM)
Suspension
Front:
Telescopic forks
Rear:
mono shock swing arm
Tyres
Front:
300-21 Tubed
Rear:
460-18 Tubed
