Suzuki - RE 5 B 77

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
500
RE 5 B Parts and accessories

Brakes

Front:
Disc
Rear:
Drum
Front-Pistons-per-caliper:
1

Dimensions

Dry Weight:
229 kg (507 lbs)
Fuel Capacity:
4.5 gallons US (3.7 gallon Imperial)
Ground Clearance:
6.7 inches
Height:
1 170 mm (46.1 in)
Length:
2 210 mm (87.0 in)
Width:
870 mm (43.3 in)

Electrics

Voltage:
12v
Ignition:
C.D.I

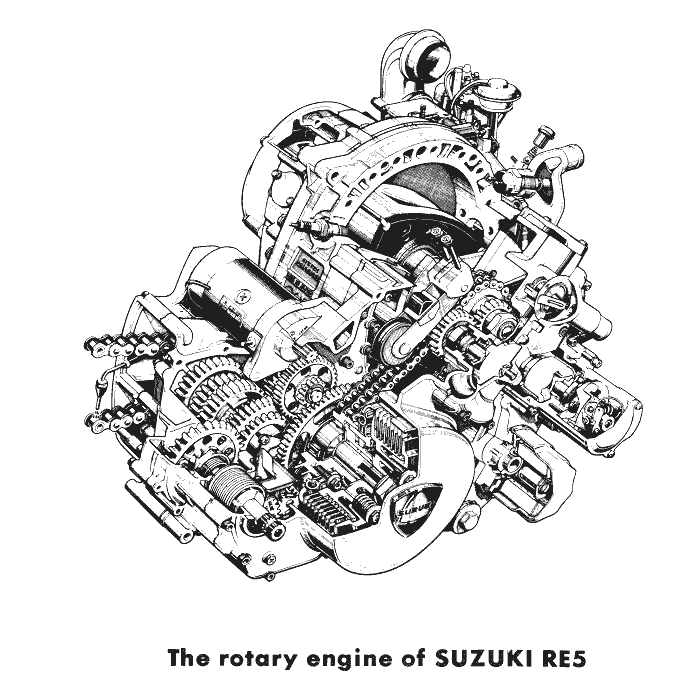

Engine

Type:
Liquid Cooled Single Rotary Wankel
Carburation:
Mikuni
Compression Ratio:
9.4 :1
Displacement:
497 cc
Starting:
electric / kick

Transmission

Final Drive:
chain
Sprocket front:
15
Sprocket rear:
42
Transmission:
5 speed

Misc.

Colour Options:
Firemist Blue - Firemist Orange
Motorcycle Style:
ROADSTER
Number Produced:
under 6300

Power

Fuel Consumption:
31-33 mpg (US Gallon)
Max Power Output:
62 hp/ 16.500 rpm
Max Torque:
54.9 lb-ft/ 13.500 rpm
Standing 1/4 mile:
13.9 sec 93 mph
Top Speed:
176 km/h (110 mph)

Suspension

Rear:
Rear swing arm Oil-dampened, 5-way Adjustable

Tyres

Front:
325-19 Tubed
Rear:
400-18 Tubed
