Spec Sheet

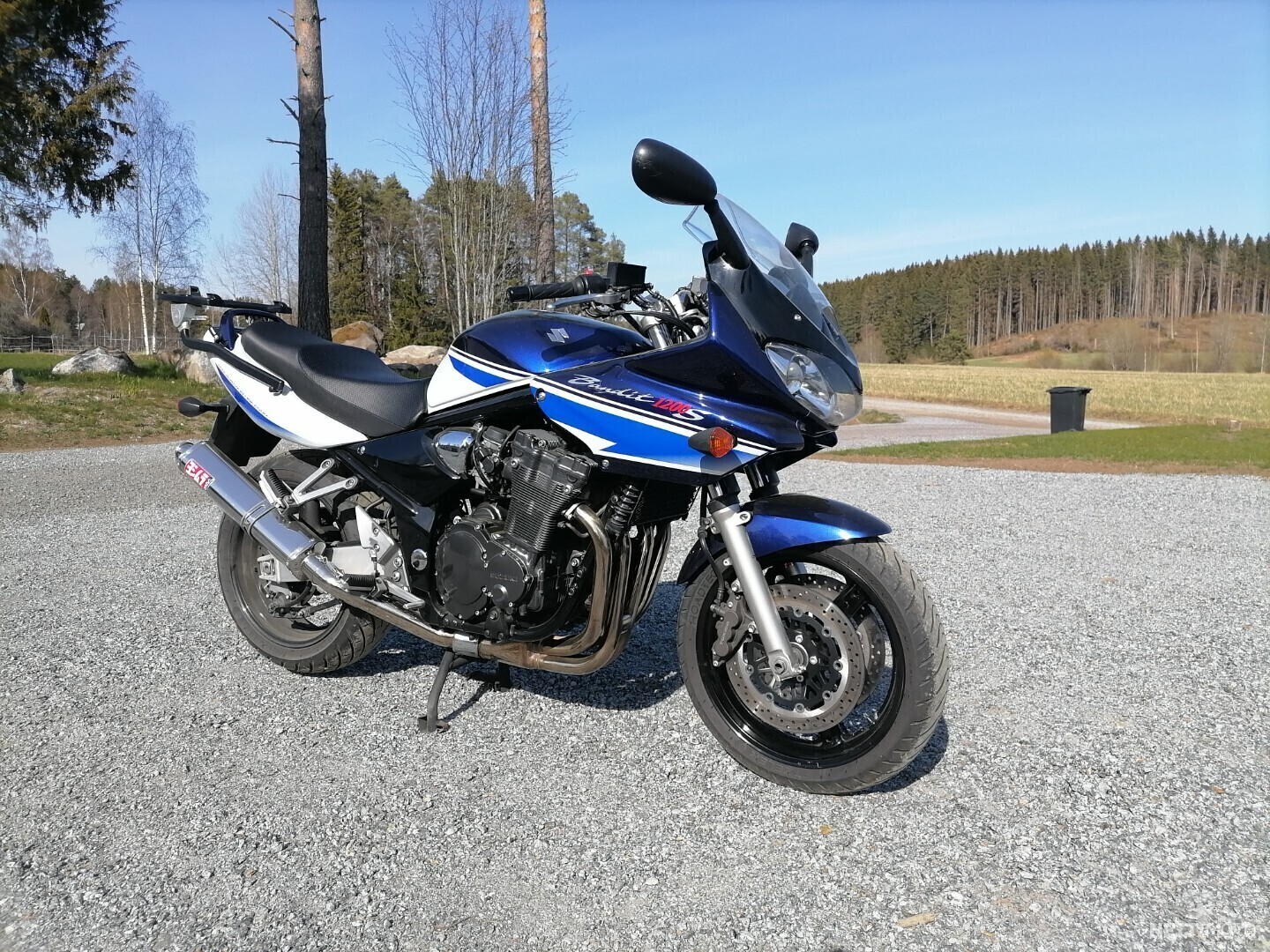

The information below is specific to the Suzuki - GSF 1200 SK5 Bandit 05, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1200
Service
Chain Freeplay mm:
20-30
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
3.5
Idle Speed (rpm):
1200 +- 100
Spark Plugs Gap (mm):
0.6 - 0.7
Tyre Pressure Back Bar / psi:
2.5 - 36
Tyre Pressure Front Bar / psi:
2.5 - 36
Valve Clearance Cold - Exhaust:
0.18 - 0.23 mm
Valve Clearance Cold - Inlet:
0.10 - 0.15 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Front-Pistons-per-caliper:
6
Dimensions
Dry Weight:
220 kg
Height:
1 220 mm (48.0 in)
Length:
2 070 mm (81.5 in)
Seat Height:
790 mm (31.1 in)
Wheelbase:
1 430 mm (56.3 in)
Width:
765 mm (30.1 in)
Electrics
Voltage:
12v
Spark Plugs:
NGK JR9B
Engine
Type:
4 Stroke DOHC Inline Four
Bore x Stroke:
79 x 59 mm
Displacement:
1157 cc
Firing Order:
1-2-4-3
No. of Valves:
16
Transmission
Chain Number of Links:
110
Sprocket front:
13
Sprocket rear:
44
Misc.
Motorcycle Style:
ROADSTER
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
180/55-ZR17 Tubeless
