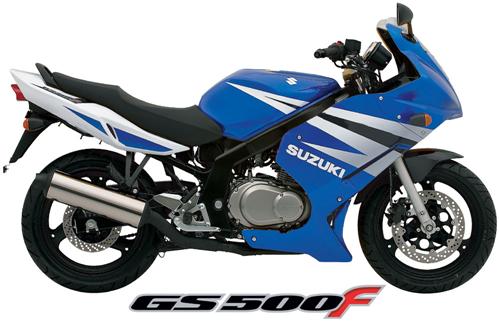

Suzuki - GS 500 FK7 07

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
500
Bike Description:
FK - Faired Model K - Unfaired
GS 500 FK7 Parts and accessories

Service

Chain Freeplay mm:
20mm
Coolant:
N/A
Cooling System (litres):
N/A
Engine Oil Classification API:
SF
Engine Oil Grade SAE:
10W/40
Engine Oil quantity (litres):
3.2litres
Engine Oil quantity with filter (litres):
2.9
Fork oil grade:
10w
Idle Speed (rpm):
1,000 - 1,200
Spark Plugs Gap (mm):
0.8 - 0.9mm
Two Stroke Oil:
N/A
Tyre Pressure Back Bar / psi:
33 psi
Tyre Pressure Front Bar / psi:
33 psi

Brakes

Front:
Disc
Rear:
Disc
Brake fluid:
Dot4
Front Disc Size:
320 mm
Front-Pistons-per-caliper:
2
Rear Disc Size:
250 mm
Rear-Pistons-per-caliper:
2

Dimensions

Fuel Capacity:
20l
Reserve Fuel Capacity:
5l
Wheelbase:
1405 mm

Electrics

Voltage:
12v
Bulb-Headlight:
H4
Main Fuse:
30amp

Engine

Type:
Air Cooled 4 Stroke DOHC Parallel Twin
Air Filtration:
Internal cone filter
Bore x Stroke:
74 x 56.6 mm
Carburation:
2 x flatslide
Compression Ratio:
9.0 to 1
Displacement:
487 cc
Firing Order:
1, 2
Lubrication System:
Oil, Wet sump
No. of Valves:
4 , 2 per cylinder
Red line RPM:
11,000


Transmission

Chain type:
520
Clutch Type:
Wet multi plate 7 x friction 6 x plain plates
Final Drive:
Chain
Sprocket front:
15
Sprocket rear:
39
Transmission:
Six speed constant mesh

Misc.

Colour Options:
Blue, Yellow, Black
Exhaust:
2 into 1
Frame:
Steel
Fuel Control:
Petcock
Motorcycle Style:
Sports
Place of Manufacture:
Japan
Swing Arm:
Steel Box Section

Power

Fuel Consumption:
45-55mpg
Max Power Output:
47bhp
Top Speed:
120mph

Suspension

Front:
Conventional 37mm forks
Rear:
Monoshock

Tyres

Front:
110/70-H17 Tubeless
Rear:
130/70-17 Tubeless
