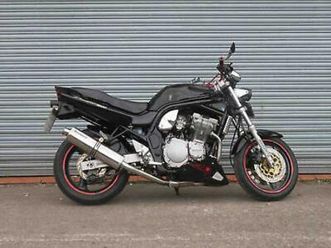

Suzuki - GSF 600 W Bandit 98

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
600
GSF 600 W Bandit Parts and accessories

Service

Engine Oil Classification API:
SF
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
3.5
Float Height:
17 - 18 mm
Fork oil grade:
10W
Front Fork Oil cc (left leg):
521
Front Fork Oil cc (right leg):
521
Idle Speed (rpm):
1200 - 1300
Spark Plugs Gap (mm):
0.6 - 0.7
Valve Clearance Cold - Exhaust:
0.18 - 0.23
Valve Clearance Cold - Inlet:
0.10 - 0.15

Electrics

Voltage:
12v
Battery:
YTX9-BS
Ignition:
TCI
Spark Plugs (Iridium):
NGK CR9EIX

Engine

Type:
Air Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
62.6 x 48.7
Carburation:
keihin 32mm
Carburation Idle Jet:
35
Displacement:
599 cc
Firing Order:
1-2-4-3
Fuel Minimum Octane Rating:
85 - 95
No. of Valves:
16
Pilot Screw Setting:
1.75


Transmission

Chain Number of Links:
110
Sprocket front:
13
Sprocket rear:
46

Misc.

Motorcycle Style:
ROADSTER

Tyres

Front:
110/70-H17 Tubeless
Rear:
150/70-ZR17 Tubeless
