Spec Sheet
The information below is specific to the Suzuki - DR 350 SEX 99, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

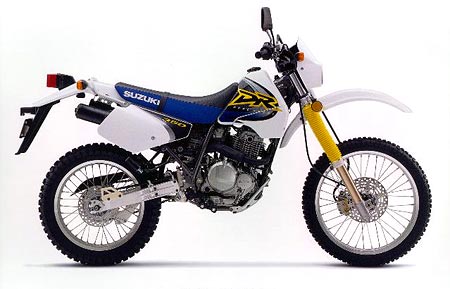

Back.Suzuki - DR 350 SEX 99
Bike Info
CC:
350
Service
Chain Freeplay mm:
25 - 40
Engine Oil Classification API:
SF
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
1.9
Fork oil grade:
10w
Front Fork Oil cc (left leg):
544 cc
Front Fork Oil cc (right leg):
544 cc
Spark Plugs Gap (mm):
0.8 - 0.9
Valve Clearance Cold - Exhaust:
0.08 - 0.13 mm
Valve Clearance Cold - Inlet:
0.05 - 0.10 mm
Brakes
Front:
Disc
Rear:
Disc
Brake fluid:
DOT 4
Front-Pistons-per-caliper:
1
Rear-Pistons-per-caliper:
1
Dimensions
Dry Weight:
118 kgs
Fuel Capacity:
9 liter (2,4/2,0 US/UK gal.)
Reserve Fuel Capacity:
1.5 litres
Trail:
115 mm (4.5 in)
Wheelbase:
1 440 mm (56.7 in)
Electrics
Voltage:
12v
Bulb-Headlight:
60/55 W
Charging System:
Flywheel generator
Ignition:
CDI
Spark Plugs:
NGK CR9EK
Engine
Type:
Air Cooled 4 Stroke SOHC Straight Single
Bore x Stroke:
79,0 x 71,2 mm
Carburation:
Mikuni BST33
Compression Ratio:
9.5 : 1
Displacement:
349 cc
Lubrication System:
Dry Sump
No. of Valves:
4
Starting:
Electric
Transmission
Chain Number of Links:
110
Final Drive:
Chain
Sprocket front:
15
Sprocket rear:
44
Transmission:
6 Speed
Misc.
Motorcycle Style:
ENDURO ROAD/TRAIL
Power
Max Power Output:
30 hp (22kW)/ 7,600 rpm
Tyres
Front:
80/100-21 Tubed
Rear:
110/90-18 Tubed
