Spec Sheet
The information below is specific to the Suzuki - GSX 1300 RK2 Hayabusa 02, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

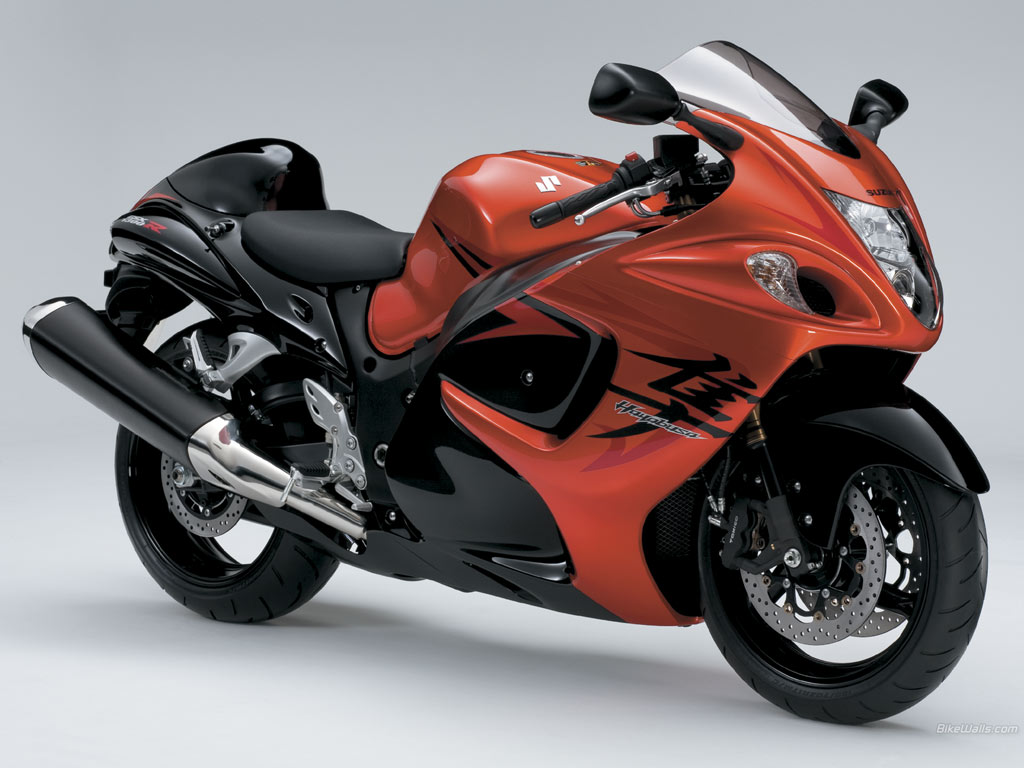

Back.Suzuki - GSX 1300 RK2 Hayabusa 02
Bike Info
CC:
1300
Service
Chain Freeplay mm:
20-30
Coolant:
3.0 Litres
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
3.50
Idle Speed (rpm):
1150 +- 100
Spark Plugs Gap (mm):
0.7 - 0.8
Tyre Pressure Back Bar / psi:
2.9 - 42
Tyre Pressure Front Bar / psi:
2.9 - 42
Valve Clearance Cold - Exhaust:
0.20 - 0.30 mm
Valve Clearance Cold - Inlet:
0.10 - 0.20 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Brake fluid:
Dot 4
Front Disc Size:
320 mm
Rear Disc Size:
240 mm
Dimensions
Dry Weight:
215 kg
Electrics
Voltage:
12v
Spark Plugs:
NGK CR9E
Engine
Type:
Liquid Cooled 4 Stroke DOHC Straight Four
Bore x Stroke:
81 x 63 mm
Displacement:
1298 cc
Firing Order:
1-2-4-3
No. of Valves:
16
Transmission
Chain Number of Links:
112
Sprocket front:
17
Sprocket rear:
40
Misc.
Fuel Control:
Fuel Injection
Motorcycle Style:
Touring
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
190/50-ZR17 Tubeless
Wheels
Front:
3,5 x 17
Rear:
6,0 x 17
