Spec Sheet

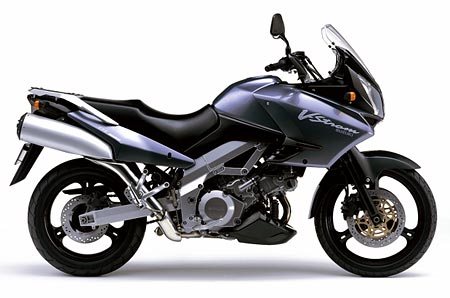

The information below is specific to the Suzuki - DL 1000 K2 V-Strom 02, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1000
Service
Chain Freeplay mm:
20 - 30
Cooling System (litres):
2.2
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
2.9
Fork oil grade:
10w
Front Fork Oil cc (left leg):
133
Front Fork Oil cc (right leg):
133
Spark Plugs Gap (mm):
0.6 -0.7
Valve Clearance Cold - Exhaust:
0.20 - 0.30 mm
Valve Clearance Cold - Inlet:
0.10 - 0.20 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Dimensions
Dry Weight:
207 kilos
Height:
1 340 mm
Length:
2 290 mm
Seat Height:
830 mm
Wheelbase:
1 550 mm
Width:
865 mm
Electrics
Voltage:
12v
Battery:
FTX14-BS
Ignition:
Map-i
Spark Plugs:
NGK CR8EK
Engine
Type:
Liquid Cooled 4 Stroke DOHC V Twin
Bore x Stroke:
98 X 66 mm
Displacement:
996 cc
Fuel Minimum Octane Rating:
91
No. of Valves:
8
Transmission
Chain Number of Links:
112
Chain type:
RK525
Sprocket front:
16
Sprocket rear:
42
Misc.
Motorcycle Style:
Sports
Power
Max Power Output:
72KW(98HP) @ 7600 rpm
Max Torque:
104 Nm @ 6.500 rpm
Tyres
Front:
110/80-H19 Tubeless
Rear:
150/70-ZR17 Tubeless
