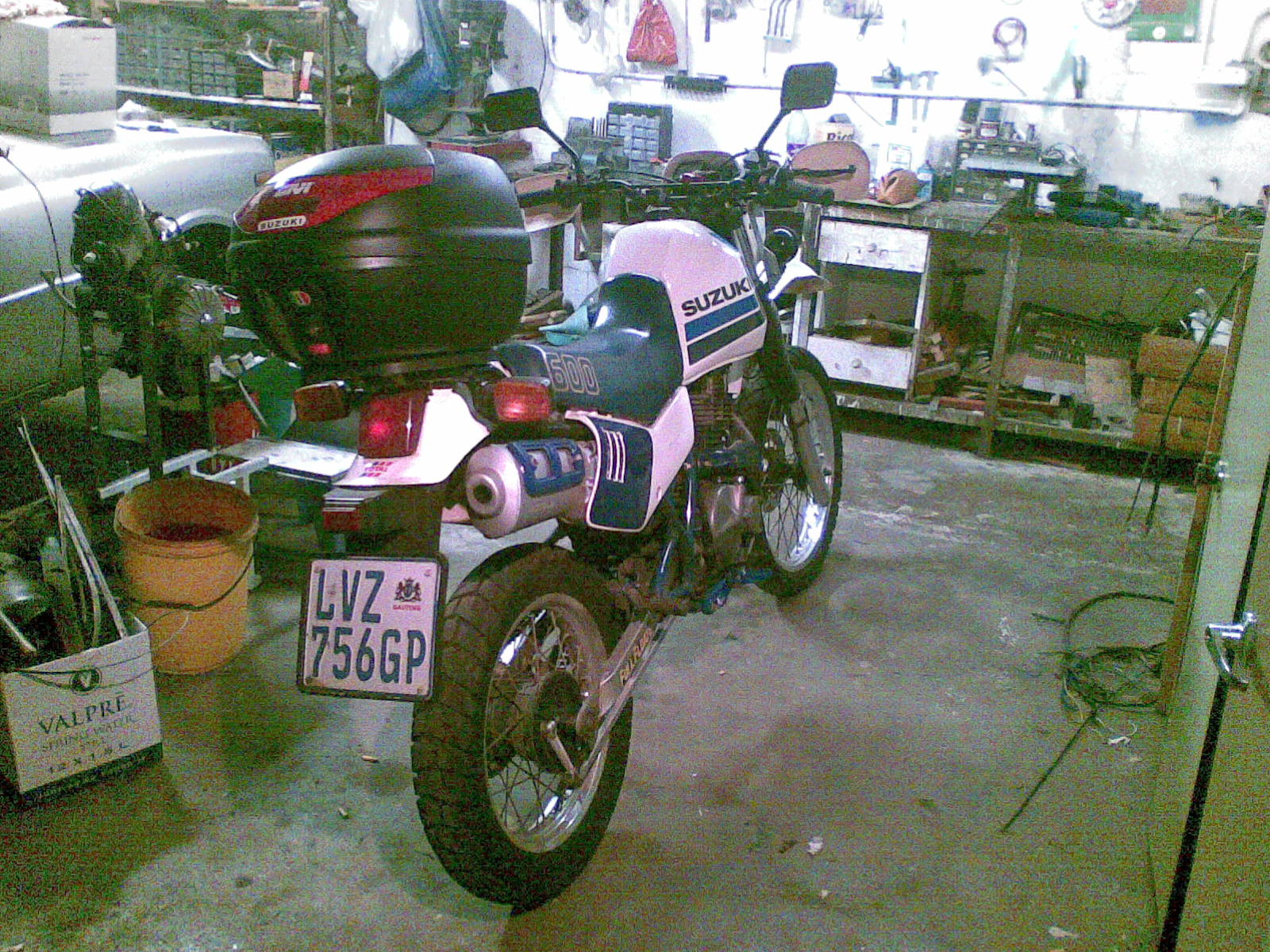

Suzuki - DR 600 SF 85

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
600
DR 600 SF Parts and accessories

Service

Chain Freeplay mm:
40 - 45
Engine Oil Classification API:
SF
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
2.45
Float Height:
23mm - 24mm
Fork oil grade:
10w
Front Fork Oil cc (left leg):
475
Front Fork Oil cc (right leg):
475
Idle Speed (rpm):
1300 - 1400
Spark Plugs Gap (mm):
0.8 - 0.9
Tyre Pressure Back Bar / psi:
25
Tyre Pressure Back - Pillion Bar / psi:
28
Tyre Pressure Front Bar / psi:
21
Tyre Pressure Front - Pillion Bar / psi:
25
Valve Clearance Cold - Exhaust:
0.08-0.13 mm
Valve Clearance Cold - Inlet:
0.08-0.13 mm

Electrics

Voltage:
12v
Battery:
12N5-3B
Ignition:
CDI
Spark Plugs:
NGK DPR9EA-9

Engine

Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
94 x 85 mm
Carburation:
Mikuni VM38SS
Carburation Idle Jet:
20
Carburation Main Jet:
135
Displacement:
589
Fuel Minimum Octane Rating:
85 -95
No. of Valves:
4 2-inlet 2-exhaust
Pilot Screw Setting:
2
Starting:
kick

Transmission

Chain Number of Links:
108
Chain type:
DID520VC-5
Final Drive:
520 o-ring chain
Sprocket front:
16
Sprocket rear:
42


Misc.

Motorcycle Style:
road trail or dual purpose

Power

Max Power Output:
33kw(44hp)
Top Speed:
150kph

Suspension

Front:
39mm telescopic tubes
Rear:
gp 100

Tyres

Front:
90/90-S21 Tubed
Rear:
130/80-17 Tubed
