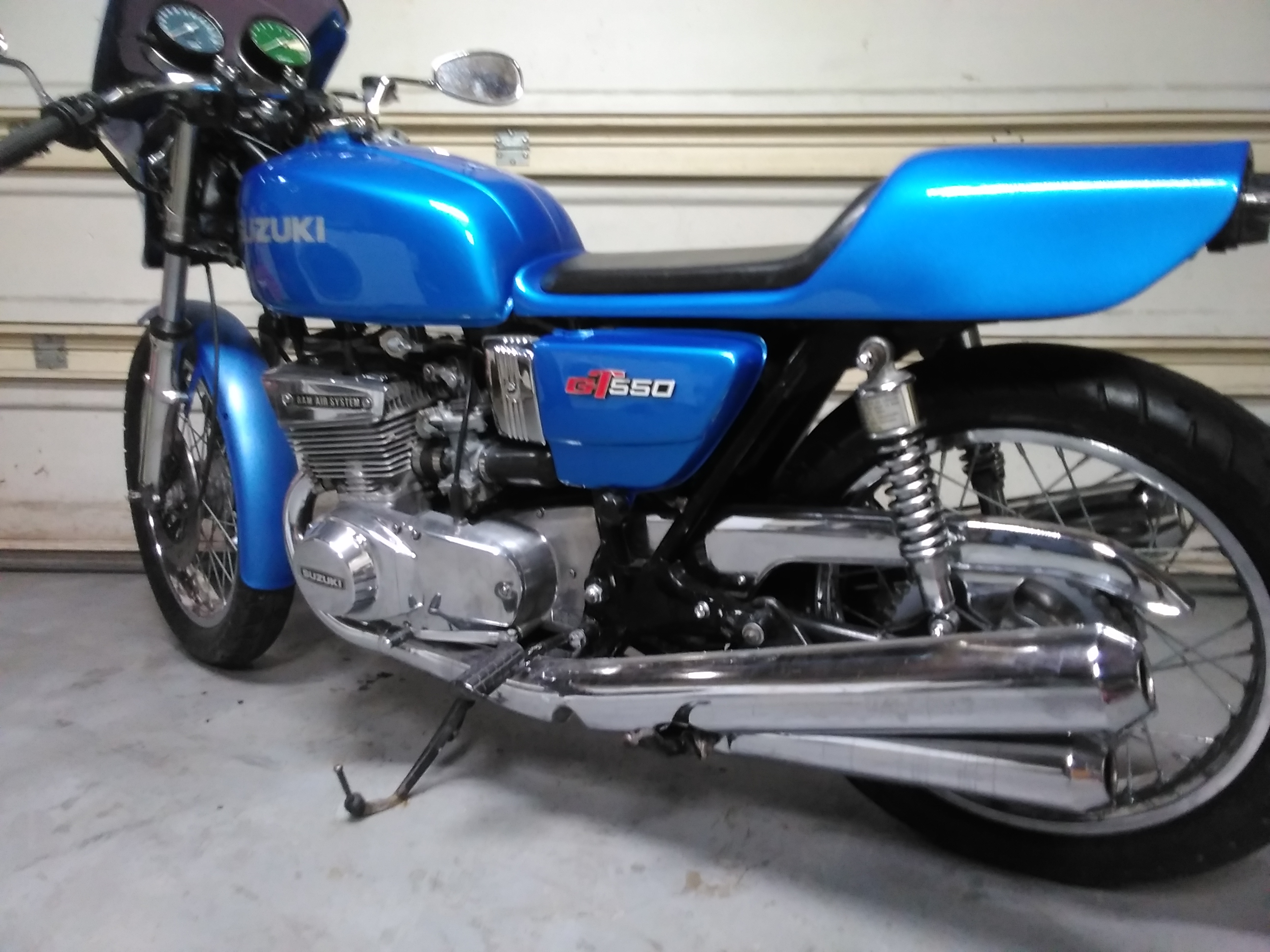

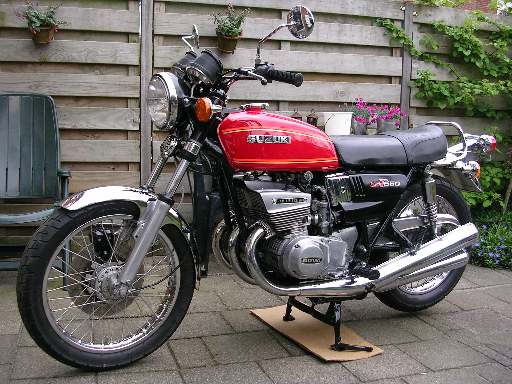

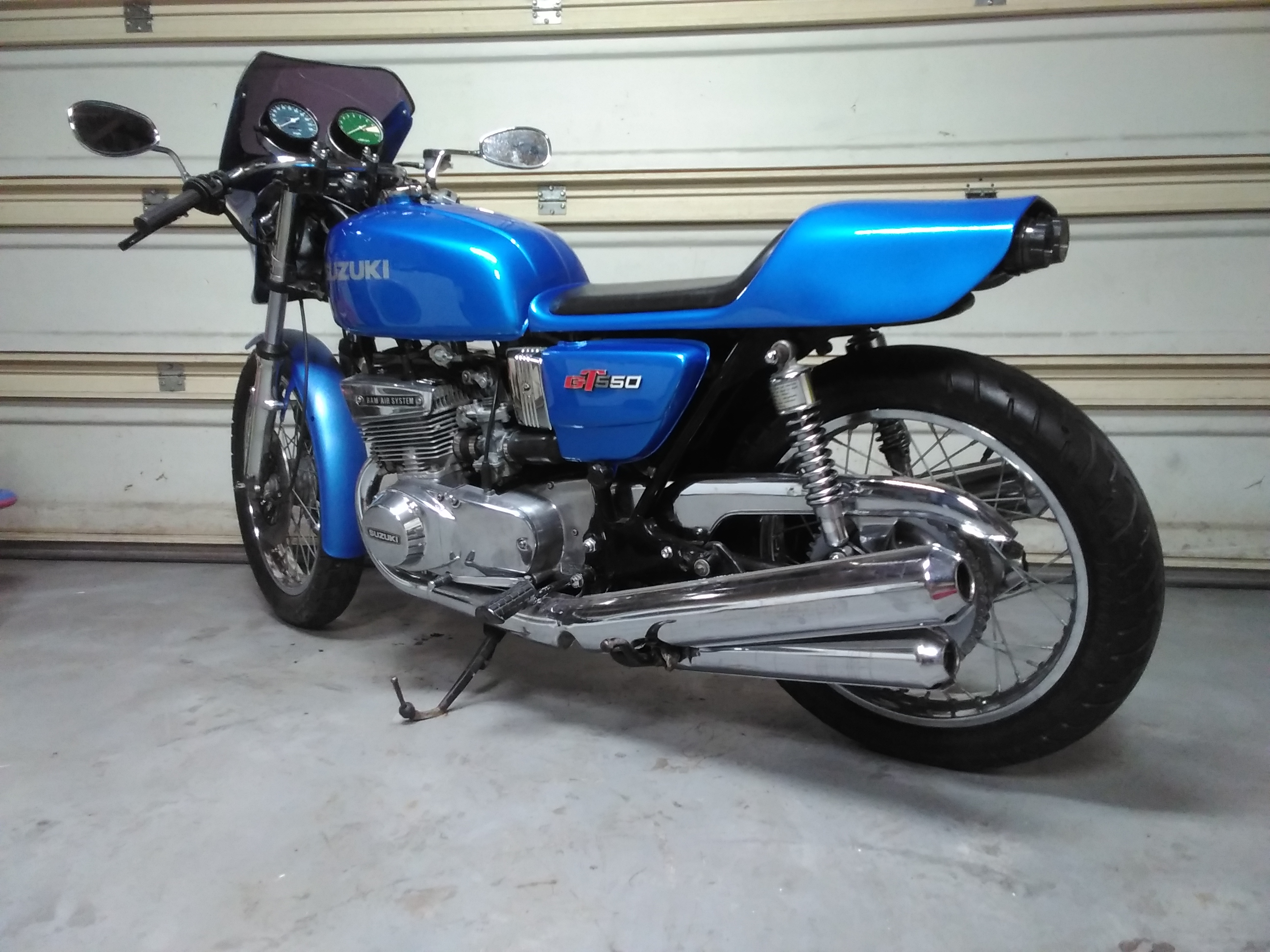

Suzuki - GT 550 A 76

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
550
GT 550 A Parts and accessories

Service

Chain Freeplay mm:
15-20 mm
Float Height:
25.8 mm
Front Fork Oil cc (left leg):
235
Front Fork Oil cc (right leg):
235
Gearbox Oil Litres:
1400 cc
Points Gap mm:
0.35 mm
Spark Plugs Gap (mm):
0.7-0.8 mm
Tyre Pressure Back Bar / psi:
26 PSI
Tyre Pressure Back - Pillion Bar / psi:
28 PSI
Tyre Pressure Front Bar / psi:
26 PSI

Brakes

Front:
Disc
Rear:
Drum

Dimensions

Dry Weight:
187 kg
Fuel Capacity:
15 litres
Height:
1100 mm
Length:
2 160 mm
Wheelbase:
1405 mm
Width:
850 mm

Electrics

Main Fuse:
20 amp

Engine

Type:
Air Cooled 2 Stroke Inline Triple
Bore x Stroke:
61.0 x 62.0 mm
Carburation:
3 x Mikuni VM 28 S C
Carburation Main Jet:
95 - 92.5 centre carb
Compression Ratio:
6.7:1
Displacement:
543 cc
Starting:
kickstart and electric

Transmission

Chain Number of Links:
106
Sprocket front:
16
Sprocket rear:
35

Misc.

Motorcycle Style:
ROADSTER

Power

Max Power Output:
50 bhp @ 6500 rpm
Max Torque:
6.1kgm @ 5000 rpm

Tyres

Front:
325-19 Tubed
Rear:
400-18 Tubed
