Spec Sheet
The information below is specific to the Suzuki - T 500 1 68, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

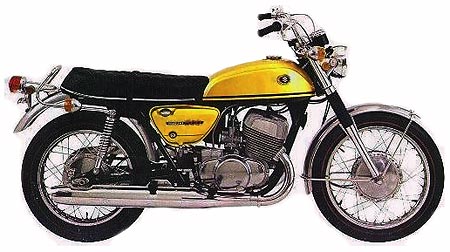

Back.Suzuki - T 500 1 68
Bike Info
CC:
500
Service
2 Stroke Tank - Litres:
1800 cc
Fork oil grade:
SAE 10W/30 or ATF
Front Fork Oil cc (left leg):
220 cc
Front Fork Oil cc (right leg):
220 cc
Points Gap mm:
0.3 - 0.4 mm (0.012 - 0.016")
Spark Plugs Gap (mm):
0.6 - 0.7 mm (0.024 - 0.028")
Transmission oil:
SAE 20W/40
Transmission oil quantity:
1200 cc
Two Stroke Oil:
Suzuki CCI SAE30
Brakes
Front:
Drum
Rear:
Drum
Dimensions
Dry Weight:
412 lbs
Fuel Capacity:
3.7 gal
Ground Clearance:
6.3"
Height:
44.3"
Length:
85.5"
Rake:
61∘
Trail:
5.14"
Width:
32.9"
Electrics
Voltage:
12v
Battery:
12V 7AH
Bulb-Headlight:
12V 35/25W
Ignition:
Battery/Points
Main Fuse:
15 amp
Spark Plugs:
NGK B77HC
Engine
Type:
Air Cooled 2 Stroke Inline Twin
Bore x Stroke:
70.0 x 64.0 mm
Carburation:
VM32SC
Compression Ratio:
6.6:1
Displacement:
492 cc
Fuel Minimum Octane Rating:
85-95 OCTANE
Lubrication System:
Posi-Force
Starting:
Kick start
Transmission
Clutch Type:
Wet multi plate
Final Drive:
Chain
Gearchange Pattern:
1 N 2 3 4 5
Gear Ratio 1st:
2.50:1 (30/12)
Gear Ratio 2nd:
1.56:1 (25/26)
Gear Ratio 3rd:
1.16:1 (22/19)
Gear Ratio 4th:
0.95:1 (21/22)
Gear Ratio 5th:
0.87:1 (20/23)
Primary Drive Ratio:
2.50:1 (65/26)
Sprocket front:
15
Sprocket rear:
33
Transmission:
5 Speed
Misc.
Motorcycle Style:
ROADSTER
Tyres
Front:
325-19 Tubed
Rear:
400-18 Tubed
