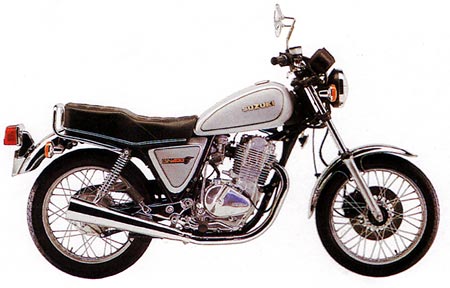

Suzuki - GN 400 TT 80

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
400
GN 400 TT Parts and accessories

Service

Engine Oil quantity (litres):
1.6
Fork oil grade:
sae15
Front Fork Oil cc (left leg):
241cc
Front Fork Oil cc (right leg):
241cc

Brakes

Front:
Disc
Rear:
Drum
Rear Drum Size:
160 mm

Dimensions

Dry Weight:
140 kg
Fuel Capacity:
10.2 litres
Height:
1 200 mm
Length:
2 110 mm
Reserve Fuel Capacity:
1.3 litres
Seat Height:
800 mm
Wheelbase:
1 410 mm
Width:
840 mm

Electrics

Voltage:
6v
Battery:
6N48-2A
Ignition:
CDI
Spark Plugs:
NGK D8EA
Spark Plugs (Iridium):
NGK DR8EIX

Engine

Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
88.0 x 65.2
Carburation:
36mm CV Mikuni
Carburation Idle Jet:
42,5
Carburation Main Jet:
132,5
Compression Ratio:
9.2 : 1
Displacement:
396 cc
Lubrication System:
Wet Sump
No. of Valves:
2
Starting:
kick


Transmission

Chain Number of Links:
98
Chain type:
520 Chain
Clutch Type:
Wet Multiplate
Final Drive:
Chain
Gear Ratio 1st:
2.33
Gear Ratio 2nd:
1.69
Gear Ratio 3rd:
1.29
Gear Ratio 4th:
1.00
Gear Ratio 5th:
0.82
Sprocket front:
15
Sprocket rear:
37
Transmission:
5 Speed constant mesh

Misc.

Frame:
Steel Tube Duplex Cradle
Motorcycle Style:
ROADSTER
Place of Manufacture:
Japan

Power

Max Power Output:
27 hp (19,7 kW) / 7.500 rpm
Max Torque:
3,0 kg-m/ 5.000 rpm
Standing 1/4 mile:
15.3 sec
Top Speed:
144 km (90 mph)

Suspension

Front:
33 mm Telescopic Forks
Rear:
Twin Shock

Tyres

Front:
300-18 Tubed
Rear:
110/90-16 Tubed
