Spec Sheet

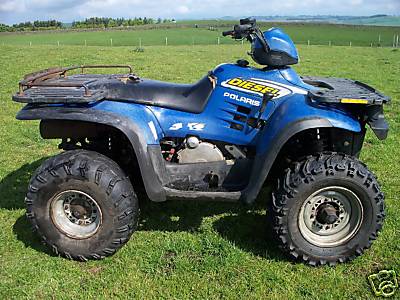

The information below is specific to the Polaris - Sportsman 500 RSE 00, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
500
Service
Tyre Pressure Back Bar / psi:
5
Tyre Pressure Front Bar / psi:
5
Brakes
Front:
Disc
Rear:
Disc
Brake fluid:
DOT 4
Dimensions
Dry Weight:
316kg
Fuel Capacity:
19.87 Ltr
Height:
119.4cm
Length:
205.7cm
Wheelbase:
128.3cm
Width:
116.8cm
Electrics
Voltage:
12v
Battery:
YB14A-A2
Ignition:
CDI
Engine
Type:
Liquid Cooled 4 Stroke SOHC Straight Single
Bore x Stroke:
3.62 x 2.95 inches
Carburation:
34mm - CV Mikuni
Displacement:
499cc
No. of Valves:
4
Starting:
electric start with recoil backu
Transmission
Final Drive:
shaft drive
Transmission:
Automatic PVT
Misc.
Colour Options:
Camo Green, Red, Yellow
Motorcycle Style:
ATV
Place of Manufacture:
USA
Suspension
Front:
MacPherson strut
Front Travel:
6.7" (17cm)
Rear:
Progressive rate swing fully independent, with anti-roll bar,
Rear Travel:
9.5" (24.1cm)
Tyres
Front:
25 x 8-12
Rear:
25 x 11.0-10
