Spec Sheet
The information below is specific to the Moto Morini - Granpasso 1200 09, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

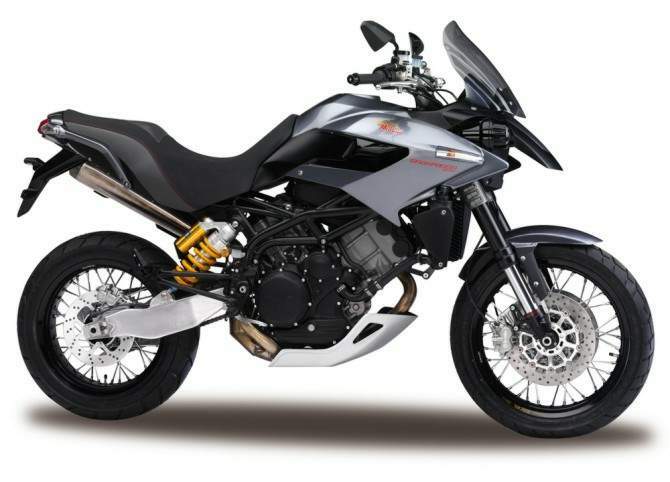

Back.Moto Morini - Granpasso 1200 09
_08/Granpasso_(1200cc)_08_1.jpg)
Bike Info
CC:
1187
Brakes
Front:
Twin Disc
Rear:
Disc
Front Disc Size:
298 mm
Front-Pistons-per-caliper:
2
Rear Disc Size:
255 mm
Rear-Pistons-per-caliper:
2
Dimensions
Dry Weight:
198 kgs
Fuel Capacity:
25 litres
Seat Height:
870 mm
Electrics
Voltage:
12v
Engine
Type:
Liquid Cooled 4 Stroke DOHC V Twin
Bore x Stroke:
107 x 66 mm
Carburation:
Magneti Marelli fuel injection 54 mm throttle body
Compression Ratio:
12.5:1
Displacement:
1187 cc
No. of Valves:
8
Transmission
Final Drive:
Chain
Transmission:
6 Speed
Misc.
Frame:
tubular steel trellis
Motorcycle Style:
Adventure Sport
Place of Manufacture:
Italy
Suspension
Front:
50mm Telescopic Marzocchi upside down
Front Travel:
190 mm
Rear:
Ohlins single shock, with separate tank
Rear Travel:
200 mm
Tyres
Front:
110/80 ZR 19
Rear:
150/70-ZR17 Tubeless
