Spec Sheet

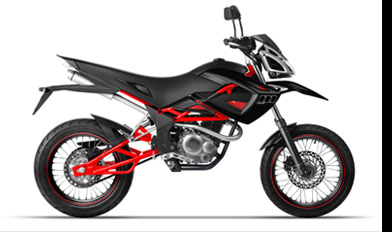

The information below is specific to the Megelli - 125 M Supermoto 10, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
125
Service
Chain Freeplay mm:
20 mm
Coolant:
N/A
Engine Oil Classification API:
AP30
Engine Oil Grade SAE:
10w40
Engine Oil quantity (litres):
1
Engine Oil quantity with filter (litres):
1
Fork oil grade:
10w
Idle Speed (rpm):
1400 +-100
Spark Plugs Gap (mm):
0,8 -0,9 mm
Tyre Pressure Back Bar / psi:
2,4 bar
Tyre Pressure Front Bar / psi:
2,2 bar
Valve Adjustment Interval:
14000 km
Brakes
Front:
Disc
Rear:
Disc
Brake fluid:
DOT4
Front Disc Size:
300x4 mm
Front-Pistons-per-caliper:
4
Rear Disc Size:
238x4 mm
Rear-Pistons-per-caliper:
2
Dimensions
Dry Weight:
110 kgs
Fuel Capacity:
7 L
Ground Clearance:
200 mm
Reserve Fuel Capacity:
0,5 L
Seat Height:
860 mm
Wet Weight:
120 kgs
Wheelbase:
1400 mm
Electrics
Voltage:
12v
Battery:
12v 4ah
Bulb-Headlight:
s2 35/35w
Ignition:
C.D.I
Main Fuse:
30A
Spark Plugs:
NGK DR7EA
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Air Filtration:
Foam element
Bore x Stroke:
56.5 x 49.5
Carburation:
Mikuni PZ26
Compression Ratio:
10:1
Displacement:
124.1
Lubrication System:
Wet sump
Pilot Screw Setting:
2.25 out
Red line RPM:
11000
Starting:
Electric
Transmission
Chain type:
520
Clutch Type:
Wet Multiplate
Final Drive:
Chain and Sprockets
Sprocket rear:
39 T
Transmission:
5 Speed
Misc.
Colour Options:
Red, White, Black
Exhaust:
Underseat 1 into 1
Frame:
Multi Twin Spar Trellis Configuration
Fuel Control:
Petcock
Motorcycle Style:
Supermotard
Place of Manufacture:
Taiwan
Swing Arm:
T6 aluminium
Power
Fuel Consumption:
3 L/100 km
Max Power Output:
11 hp
Max Torque:
9 nm
Power/Weight Ratio:
0,100000
Top Speed:
120 kph
Suspension
Front:
Double fork
Front Travel:
200 mm
Rear:
Monoshock
Rear Travel:
110 mm
Tyres
Front:
100/70-17
Rear:
130/70-17
