Spec Sheet
The information below is specific to the MV Agusta - F4RR-312 1078 08, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

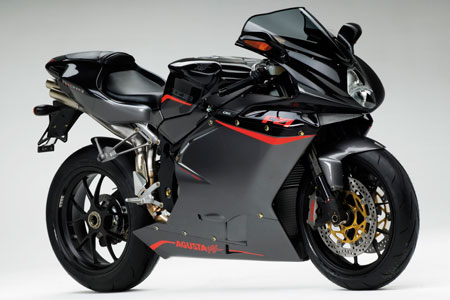

Back.MV Agusta - F4RR-312 1078 08
/F4RR-312__1078cc_08/F4RR-312__1078cc_08_1.jpg)
Bike Info
CC:
1078
Brakes
Front:
Twin Disc
Rear:
Disc
Front Disc Size:
320 mm
Front-Pistons-per-caliper:
4 x 34mm
Rear Disc Size:
210 mm
Rear-Pistons-per-caliper:
4
Dimensions
Fuel Capacity:
21 litres
Length:
2007 mm
Seat Height:
810 mm
Wheelbase:
1408 mm
Width:
685 mm
Electrics
Voltage:
12v
Ignition:
Weber Marelli 5SM ignition
Engine
Type:
Liquid Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
79 x 55 mm
Displacement:
1078 cc
No. of Valves:
16
Red line RPM:
13000
Starting:
Electric
Transmission
Final Drive:
Chain
Transmission:
6 Speed
Misc.
Frame:
CrMoSteel tubular trellis (TIG welded)
Motorcycle Style:
Sport
Place of Manufacture:
Italy
Swing Arm:
Aluminium Single Sided
Power
Max Power Output:
140 Kw (190 HP) at 12200
Suspension
Front:
50 mm upside down fork
Front Travel:
130 mm
Rear Travel:
120 mm
Tyres
Front:
120/70ZR-17
Rear:
190/55ZR-17
