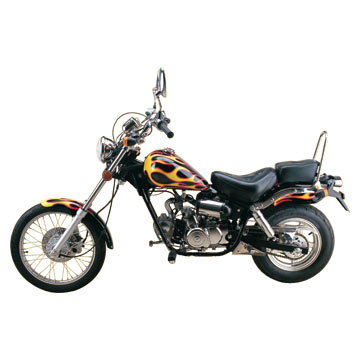

Kinroad - Xintian XT50 Q Custom Cruiser 05

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
50
Xintian XT50 Q Custom Cruiser Parts and accessories

Service

Coolant:
N/a
Spark Plugs Gap (mm):
0.4
Two Stroke Oil:
n/a
Valve Clearance Cold - Exhaust:
0.05
Valve Clearance Cold - Inlet:
0.05

Brakes

Front:
Disc
Rear:
Drum

Dimensions

Dry Weight:
80 kgs
Ground Clearance:
min 3800mm
Height:
1085 mm
Length:
2040 mm
Wet Weight:
87 kg
Wheelbase:
990 mm
Width:
755 mm

Electrics

Voltage:
12v
Battery:
12v4ah
Bulb-Headlight:
12v25w/25w
Ignition:
CDI
Main Fuse:
15
Spark Plugs:
T1136 or T1137

Engine

Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
39 x 41.4 mm
Compression Ratio:
10: 1
Displacement:
49.5cc
No. of Valves:
2
Starting:
Kick and Electric


Transmission

Clutch Type:
Wet multi-plate type
Final Drive:
Chain
Gear Ratio 1st:
3.181: 1
Gear Ratio 2nd:
1.705: 1
Gear Ratio 3rd:
1.238: 1
Gear Ratio 4th:
0.958: 1
Transmission:
4 Speed

Misc.

Insurance Group:
4
Motorcycle Style:
Custom - Cruiser - Mini Chopper
Place of Manufacture:
China

Power

Fuel Consumption:
very good
Top Speed:
45

Suspension

Rear:
Twin Shock Forked Swinging Arm

Tyres

Front:
2.50-17
Rear:
400-12
