Spec Sheet

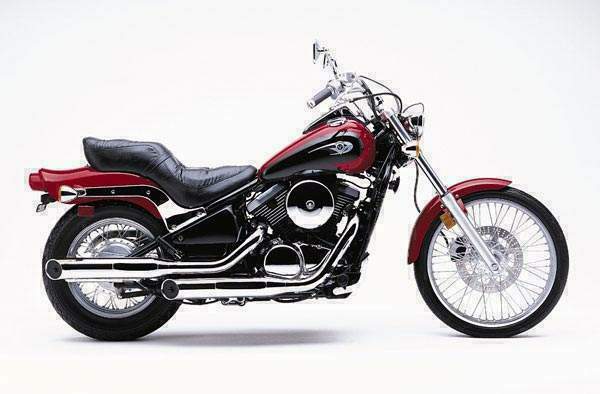

The information below is specific to the Kawasaki - VN 800 A2 96, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
800
Chassis info:
VN800A-030001 - 050000
Service
Cooling System (litres):
2,4
Engine Oil Classification API:
SE (or higher)
Engine Oil Grade SAE:
10W40(or 50) - 20W40(or 50)
Engine Oil quantity (litres):
3,2 (Dry Engine)
Engine Oil quantity with filter (litres):
2,7 (2,9 filter removed)
Tyre Pressure Back - Pillion Bar / psi:
32 Psi
Tyre Pressure Front - Pillion Bar / psi:
28 Psi
Brakes
Front:
Disc
Rear:
Drum
Brake fluid:
Dot 4
Front Disc Size:
300 mm
Front-Pistons-per-caliper:
2
Rear Drum Size:
180 mm
Dimensions
Dry Weight:
225 Kg
Fuel Capacity:
15 Litres
Ground Clearance:
160 mm
Height:
1170 mm
Length:
2370 mm
Rake:
34°
Reserve Fuel Capacity:
3 Litres
Seat Height:
712 mm
Trail:
150 mm
Wet Weight:
239 Kg
Wheelbase:
1625 mm
Width:
825 mm
Electrics
Voltage:
12v
Battery:
12V 12Ah
Bulb-Headlight:
12V 60/55W
Ignition:
Digital K-TRIC
Spark Plugs:
NGK CR7E
Engine
Type:
Liquid Cooled SOHC V Twin
Bore x Stroke:
88.0 x 66.2mm
Carburation:
Keihin CVK36
Compression Ratio:
9.5:1
Displacement:
805 cc
Lubrication System:
Forced (wet sump)
No. of Valves:
8
Transmission
Chain Number of Links:
114
Clutch Type:
Wet, Multi disc
Final Drive:
Chain
Sprocket front:
14
Sprocket rear:
46
Transmission:
5 Speed
Misc.
Motorcycle Style:
CRUISER
Power
Fuel Consumption:
19,4 Km/l
Standing 1/4 mile:
13,7 sec/151,2 Km/h
Top Speed:
179,6 Km/h
Suspension
Front:
41 mm telescopic fork
Rear:
Uni-Track
Tyres
Front:
80/90-21 48H Tubeless
Rear:
140/90-16 T71H ubeless
