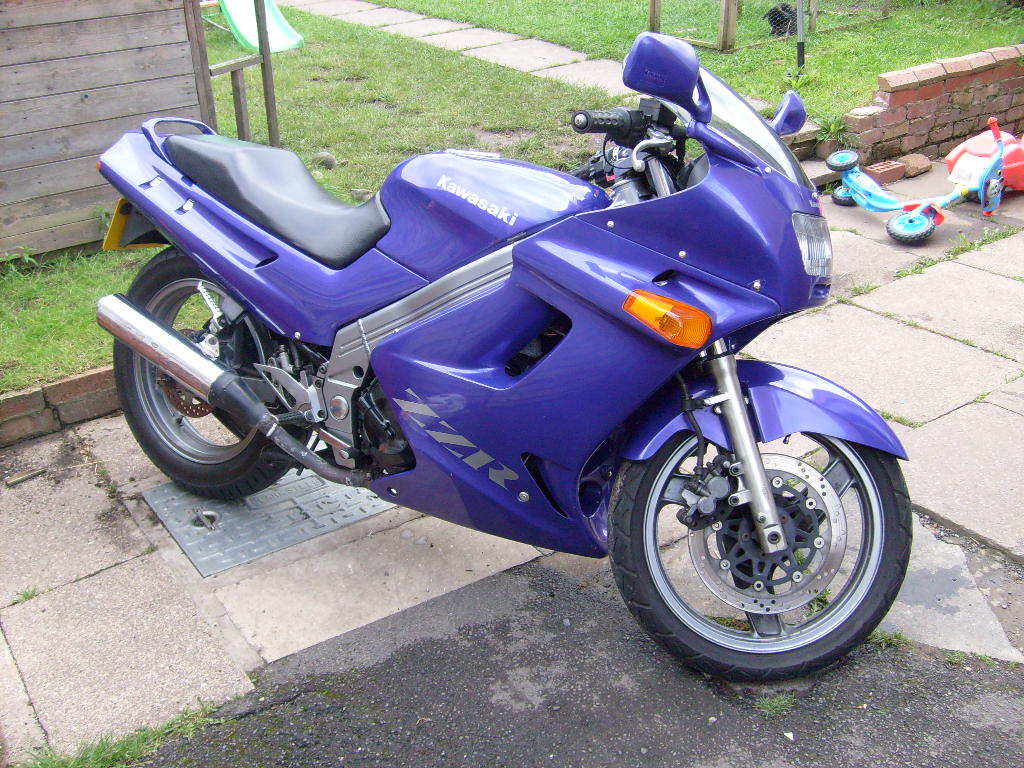

Kawasaki - ZZR 250 (EX 250 H12) 01

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
250
ZZR 250 (EX 250 H12) Parts and accessories

Service

Chain Freeplay mm:
25MM
Engine Oil Grade SAE:
10/40W
Engine Oil quantity (litres):
1.9LTRS
Engine Oil quantity with filter (litres):
2.2LTRS
Idle Speed (rpm):
1300RPM
Valve Clearance Cold - Exhaust:
0.13mm
Valve Clearance Cold - Inlet:
0.10mm

Brakes

Front:
Disc
Brake fluid:
DOT4
Front Disc Size:
320MM
Front-Pistons-per-caliper:
2
Rear Disc Size:
180
Rear-Pistons-per-caliper:
1

Dimensions

Dry Weight:
140KG
Fuel Capacity:
18LTRS
Ground Clearance:
150MM
Wet Weight:
155KG

Electrics

Voltage:
12v
Ignition:
FULLY TRANSISTORISED
Spark Plugs:
NGK CR8HSA

Engine

Type:
Liquid Cooled 4 Stroke DOHC
Displacement:
249CC
Firing Order:
1-2
Lubrication System:
WET SUMP
No. of Valves:
8
Pilot Screw Setting:
1.5 TURNS OUT
Red line RPM:
14500

Transmission

Chain Number of Links:
108
Gearchange Pattern:
1N23456
Sprocket front:
15
Sprocket rear:
47

Misc.

Frame:
SINGLE DIAMOND
Motorcycle Style:
Sports

Power

Fuel Consumption:
65MPG
Standing 1/4 mile:
14SECS
Top Speed:
110MPH

Suspension

Front Travel:
90
Rear Travel:
120

Tyres

Front:
100/80-H17 Tubeless
Rear:
140/70-17 Tubeless
