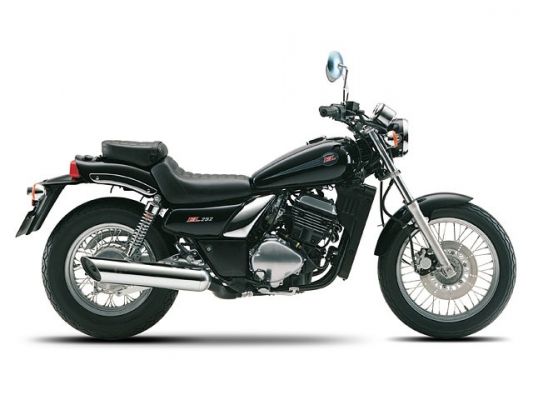

Kawasaki - EL 250 F5 Eliminator 252 01

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
250
EL 250 F5 Eliminator 252 Parts and accessories

Brakes

Front:
Disc
Rear:
Drum
Front Disc Size:
300 mm
Front-Pistons-per-caliper:
2

Dimensions

Dry Weight:
167 kg
Fuel Capacity:
14 litres
Height:
1075 mm (42.3 inches)
Length:
2355 mm (92.7 inches)
Rake:
35 degrees
Seat Height:
690 mm (27.2 inches)
Trail:
154 mm
Wheelbase:
1620 mm (63.8 inches)
Width:
775 mm (30.5 inches)

Electrics

Voltage:
12v
Ignition:
Digital
Spark Plugs:
NGK CR8HSA

Engine

Type:
Liquid Cooled 4 Stroke DOHC V Twin
Bore x Stroke:
62 mm x 41.2 mm
Carburation:
2 x Keihin CVK32
Compression Ratio:
12:1
Displacement:
249 cc
Lubrication System:
Wet sump
No. of Valves:
8
Starting:
Electric

Transmission

Chain Number of Links:
112
Clutch Type:
Wet multi plate
Final Drive:
Chain
Gear Ratio 1st:
2.857
Gear Ratio 2nd:
1.842
Gear Ratio 3rd:
1.409
Gear Ratio 4th:
1.160
Gear Ratio 5th:
1.038
Gear Ratio 6th:
0.928
Primary Drive Ratio:
3.440 (86/25)
Sprocket front:
15
Sprocket rear:
39

Misc.

Motorcycle Style:
CRUISER

Power

Max Power Output:
34 hp (25.4 kW) @ 8000 rpm
Max Torque:
23.5 Nm (17.3 ft. lbs) @ 7000 rpm

Suspension

Front:
41 mm telescopic fork , 160 mm travel
Rear:
Dual shocks, adjustable preload , 300 mm travel

Tyres

Front:
120/80-17 Tubeless
Rear:
140/90-H15 Tubeless
