Spec Sheet
The information below is specific to the Kawasaki - BN 175 Boss A5 05, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

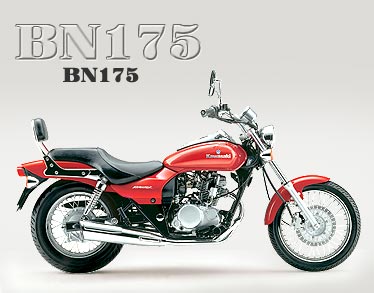

Back.Kawasaki - BN 175 Boss A5 05
Bike Info
CC:
175
Bike Description:
The EL175 was manufactured and sold as the Kawasaki Bajaj Eliminator in India by Bajaj Auto in collaboration with Kawasaki. The export model is called BN175
Service
Chain Freeplay mm:
25 ∼ 40 mm (0.98 ∼ 1.57 in.)
Engine Oil Classification API:
API SH, SJ or SL with JASO MA
Engine Oil Grade SAE:
SAE 10W-40
Engine Oil quantity with filter (litres):
1.2
Spark Plugs Gap (mm):
0.7 ∼ 0.8
Tyre Pressure Back Bar / psi:
1.75 / 25
Tyre Pressure Front Bar / psi:
1.5 / 21
Valve Clearance Cold - Exhaust:
0.15 ∼ 0.19 mm (0.0059 ∼ 0.0075 in.)
Valve Clearance Cold - Inlet:
0.08 ∼ 0.12 mm (0.0031 ∼ 0.0047 in.)
Brakes
Front:
Disc
Rear:
Drum
Dimensions
Dry Weight:
127.9 kilos
Fuel Capacity:
12.68 litres
Ground Clearance:
155 mm
Height:
1049 mm
Length:
2155 mm
Seat Height:
681 mm
Wheelbase:
1471 mm
Width:
780 mm
Electrics
Voltage:
12v
Ignition:
CDI
Spark Plugs:
CR8E
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
55.0 x 52.4 mm
Carburation:
Keihin PWK28
Compression Ratio:
9.6:1
Displacement:
175 cc
No. of Valves:
2
Transmission
Chain Number of Links:
132
Chain type:
428
Clutch Type:
Wet Multiplate
Transmission:
6 Speed
Misc.
Exhaust:
Cruiser
Frame:
Double-cradle, high-tensile steel
Suspension
Front:
33 mm Telescopic Forks
Tyres
Front:
90/90-17
Rear:
130/90-15
