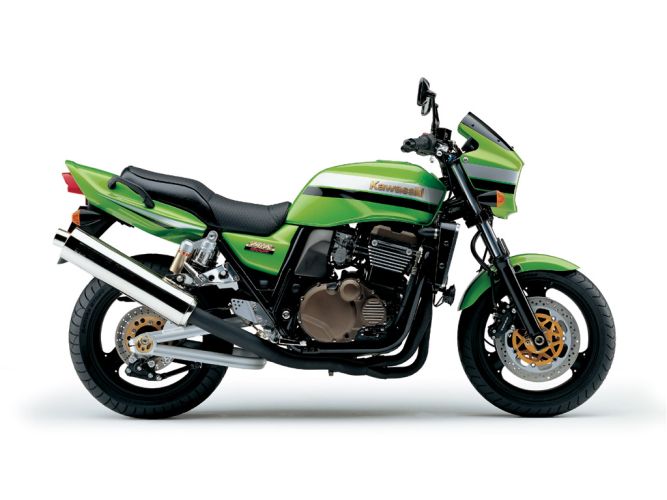

Kawasaki - ZRX 1200 R (ZR 1200 A4) 04

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
1200
Chassis info:
ZRT20AAA-035001 - 039000
ZRX 1200 R (ZR 1200 A4) Parts and accessories

Service

Cooling System (litres):
3.0L
Engine Oil Classification API:
API SE, SF OR SG/API SH OR SJ WITH JASO MA
Engine Oil Grade SAE:
10W-40
Engine Oil quantity with filter (litres):
3.5L

Brakes

Front:
Twin Disc
Rear:
Disc
Brake fluid:
DOT 4
Front-Pistons-per-caliper:
6
Rear-Pistons-per-caliper:
2

Dimensions

Dry Weight:
224kg
Fuel Capacity:
19L
Ground Clearance:
135mm
Height:
1,150mm
Length:
2,120mm
Trail:
106mm
Wheelbase:
1,465mm
Width:
780mm

Electrics

Voltage:
12v
Battery:
12v 12 Ah
Bulb-Headlight:
12v 60/55w
Ignition:
Battery and coil
Ignition Timing:
10o BTDC
Spark Plugs:
NGK CR9EK


Engine

Type:
Liquid Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
79.0 X 59.4mm
Carburation:
Keihin CVK36 X 4
Compression Ratio:
10.1:1
Displacement:
1,164mL
Firing Order:
1 2 4 3
Lubrication System:
Forced lubrication (wet sump)
No. of Valves:
16
Starting:
Electric

Transmission

Clutch Type:
Wet, multi disc
Final Drive:
2.470
Gearchange Pattern:
1N2345
Gear Ratio 1st:
2.733
Gear Ratio 2nd:
1.947
Gear Ratio 3rd:
1.478
Gear Ratio 4th:
1.192
Gear Ratio 5th:
1.035
Primary Drive Ratio:
1.637
Transmission:
5 speed

Misc.

Fuel Control:
Carburetor
Motorcycle Style:
Standard
Place of Manufacture:
Japan
Swing Arm:
Braced twin tube

Power

Max Power Output:
92kW
Max Torque:
114Nm

Tyres

Front:
120/70 ZR17
Rear:
185/55 ZR17
