Spec Sheet

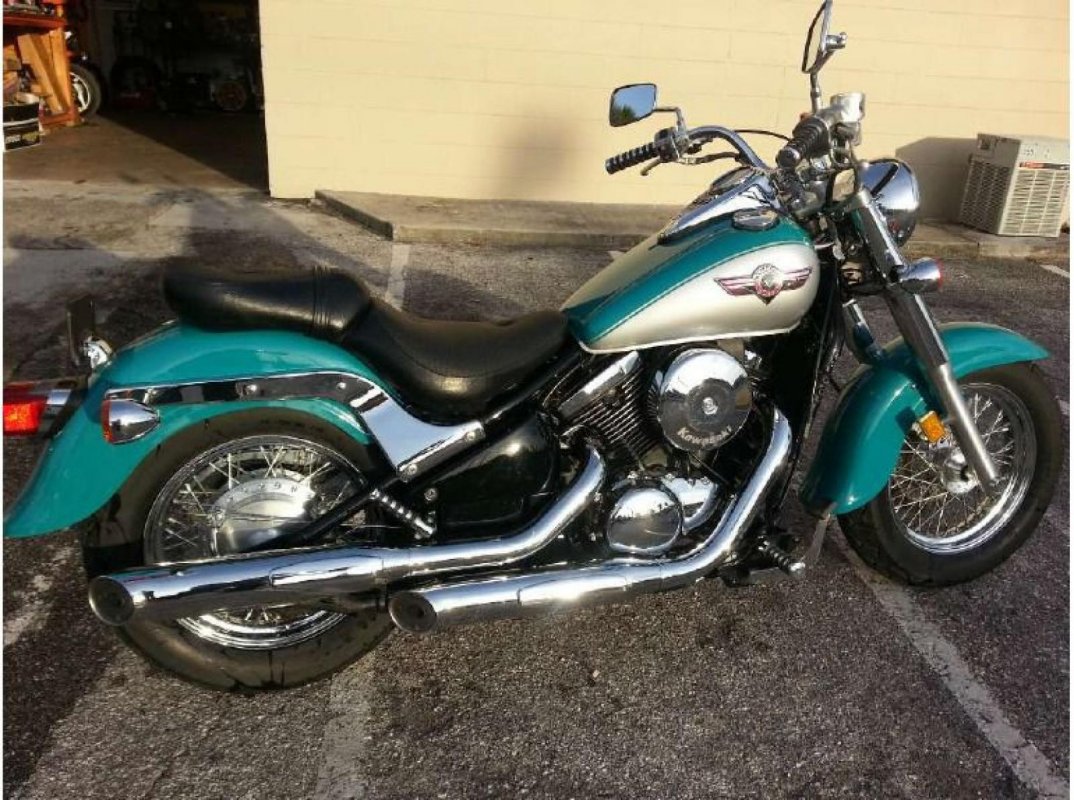

The information below is specific to the Kawasaki - VN 800 A3 97, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
800
Chassis info:
VN800A-050001 - 063000
Service
Cooling System (litres):
2,4
Engine Oil Classification API:
SE (or higher)
Engine Oil Grade SAE:
10W40 (or 50) - 20W40 (or 50)
Engine Oil quantity (litres):
3,2 (Dry Engine)
Engine Oil quantity with filter (litres):
2,7 (2,9 filter removed)
Tyre Pressure Back - Pillion Bar / psi:
32 Psi
Tyre Pressure Front - Pillion Bar / psi:
28 Psi
Brakes
Front:
Disc
Rear:
Drum
Brake fluid:
Dot 4
Front Disc Size:
300 mm
Rear Drum Size:
180 mm
Dimensions
Dry Weight:
225 Kg
Fuel Capacity:
15 Litres
Ground Clearance:
160 mm
Height:
1171 mm
Length:
2360 mm
Rake:
34°
Seat Height:
711 mm
Wet Weight:
245 Kg
Wheelbase:
1626 mm
Width:
826 mm
Electrics
Voltage:
12v
Battery:
12V 12Ah
Bulb-Headlight:
12V 60/55W
Charging System:
Electric starter
Spark Plugs:
NGK CR7E
Engine
Type:
Liquid Cooled SOHC V Twin
Bore x Stroke:
88.0 x 66.2mm
Carburation:
Keihin CVK36
Compression Ratio:
9.5:1
Displacement:
805 cc
Lubrication System:
Forced lubrication (wet sump)
No. of Valves:
8
Starting:
Kick
Transmission
Chain Number of Links:
114
Clutch Type:
Wet, Multi disc
Final Drive:
chain
Sprocket front:
15
Sprocket rear:
40
Transmission:
5 Speed
Misc.
Motorcycle Style:
CRUISER
Suspension
Front:
41 mm Telescopic Fork
Rear:
Uni-Track
Tyres
Front:
80/90-21 48H Tubeless
Rear:
140/90-16 71H Tubeless
