Spec Sheet

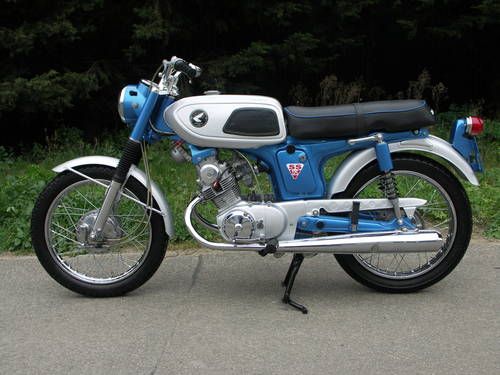

The information below is specific to the Honda - SS 125 A 68, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
125
Service
Engine Oil quantity with filter (litres):
1.2 litres
Brakes
Front:
Drum
Rear:
Drum
Dimensions
Dry Weight:
105 kilos
Fuel Capacity:
8.2 litres
Electrics
Voltage:
6v
Ignition:
mechanical points
Engine
Type:
Air Cooled 4 Stroke SOHC Parallel Twin
Bore x Stroke:
44 mm × 41 mm
Carburation:
Keihin Seiki vacuum carburettor,
Compression Ratio:
9.4:1
Displacement:
124 cc
No. of Valves:
4
Transmission
Clutch Type:
Wet Multiplate
Transmission:
4 Speed
Misc.
Frame:
Pressed steel "T-bone" type frame
Power
Max Power Output:
13 PS (9.6 kW) @ 10,000
Suspension
Front:
Telscopic Front Forks
Rear:
Twin Shocks
Tyres
Front:
2.75 x 17
Rear:
2.75 x 17
