Spec Sheet

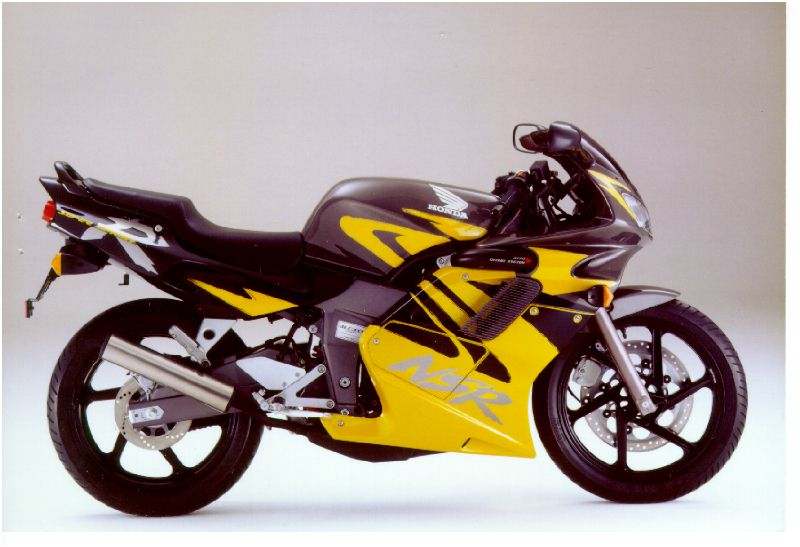

The information below is specific to the Honda - NSR 125 RX 99, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
125
Brakes
Front:
Disc
Rear:
Disc
Front Disc Size:
318 x 4 mm
Front-Pistons-per-caliper:
2
Rear Disc Size:
220 x 4 mm
Rear-Pistons-per-caliper:
1
Dimensions
Dry Weight:
132kg
Fuel Capacity:
13 litres
Reserve Fuel Capacity:
2.8 litres
Seat Height:
800 mm
Wheelbase:
1345 mm
Electrics
Voltage:
12v
Ignition:
Discharge (CDI)
Spark Plugs:
NGK BR9ECS
Engine
Type:
Liquid Cooled 2 Stroke Single
Bore x Stroke:
54 x 54 mm
Compression Ratio:
6.8:1
Displacement:
124.8cc
Transmission
Chain Number of Links:
108
Sprocket front:
12
Sprocket rear:
36
Misc.
Motorcycle Style:
Sports
Power
Max Power Output:
26.5PS @ 9,400rpm (DIN) (18.5kW)
Max Torque:
1.95kg-m/9,500rpm (DIN) (19.1Nm/9,500min-1)
Suspension
Front:
35mm telescopic fork, 118mm axle travel
Rear:
Pro-Link swingarm, 125mm axle travel
Tyres
Front:
100/80-17 Tubeless
Rear:
130/70-17 Tubeless
