Spec Sheet

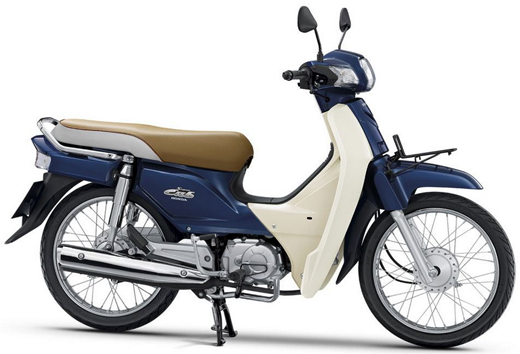

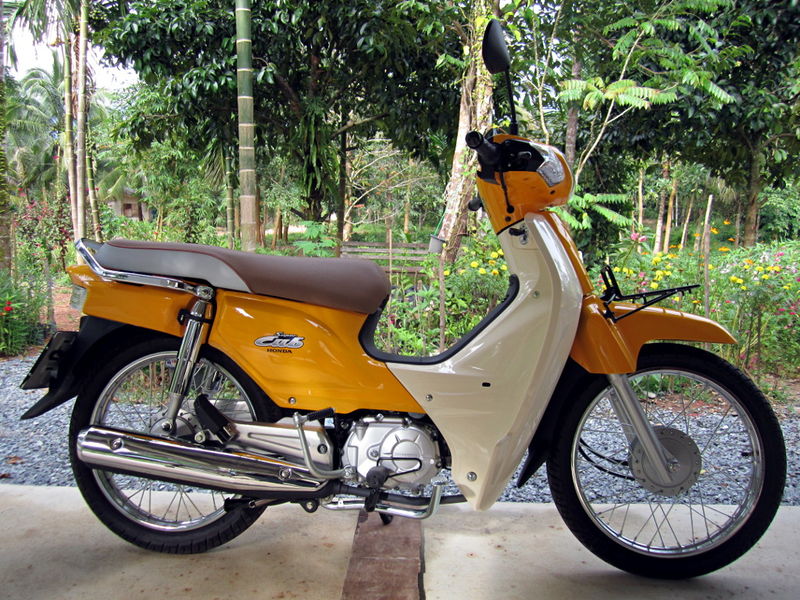

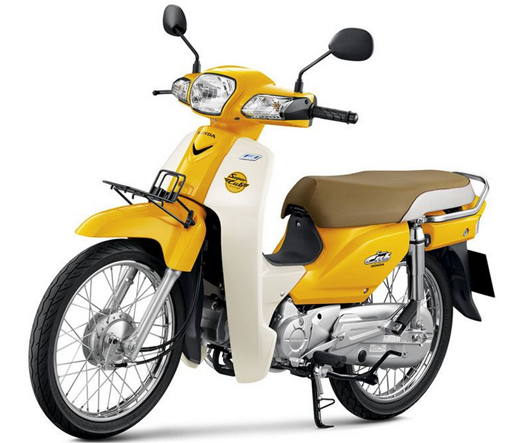

The information below is specific to the Honda - NCB110 Super Cub 17, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
110
Brakes
Front:
Drum
Rear:
Drum
Electrics
Voltage:
12v
Ignition:
PGM F1
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
50 x 55.6 mm
Compression Ratio:
9:1
Displacement:
109 cc
No. of Valves:
2
Starting:
Electric
Transmission
Chain Number of Links:
102
Chain type:
420
Final Drive:
Chain and Sprocket
Sprocket front:
14
Sprocket rear:
37
Transmission:
4 Speed clutchless Manual
Misc.
Motorcycle Style:
Cub Stepthru
Place of Manufacture:
Thailand
Tyres
Front:
70/90-17
Rear:
80/90-17
Add information to the model
All information presented on the website is given to the best of our knowledge at the given time. All information is intended to only as a guide. A major Japanese manufacturer's quote:
We reserve the right to vary our specification with or without notice, and as such time and in such manner as we think fit.
