Spec Sheet

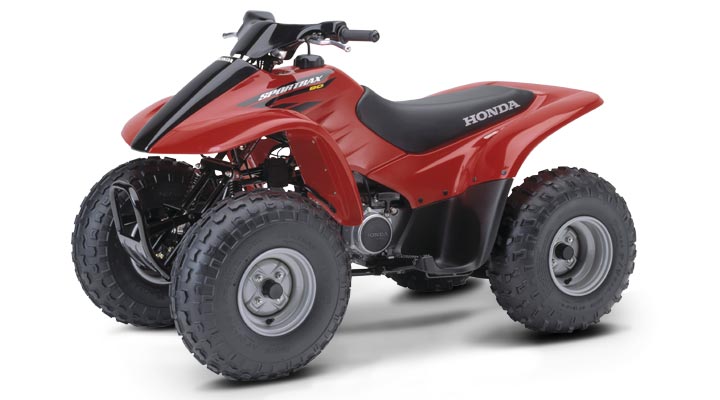

The information below is specific to the Honda - TRX 90 Fourtrax/Sportrax T 96, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
90
Brakes
Front:
Drum
Rear:
Drum
Dimensions
Dry Weight:
113.9 Kg
Fuel Capacity:
7.6 Ltr
Seat Height:
660.4mm
Wheelbase:
983mm
Electrics
Spark Plugs:
NGK CR7HSA
Spark Plugs (Iridium):
CR7HIX
Engine
Type:
Air Cooled 4 Stroke SOHC Straight Single
Displacement:
86 cc
Transmission
Chain Number of Links:
98
Chain type:
428
Clutch Type:
Automatic Clutch
Final Drive:
Chain
Sprocket front:
17
Sprocket rear:
50
Transmission:
Manual 4 - speed
Tyres
Front:
20 X 7-8
Rear:
19 X 8-8
Wheels
Bearing Front Left:
6003 2RS
Bearing Front Right:
6003 2RS
