Spec Sheet

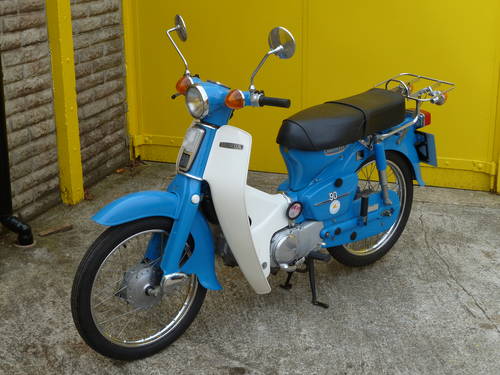

The information below is specific to the Honda - C 90 ZZ 89.5cc Models 81, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
90
Service
Valve Clearance Cold - Exhaust:
0.05mm/0.002inch
Valve Clearance Cold - Inlet:
0.05mm/0.002inch
Brakes
Front:
Drum
Rear:
Drum
Electrics
Voltage:
6V
Engine
Type:
Air Cooled 4 Stroke SOHC Flat Single
Air Filtration:
Paper Element
Bore x Stroke:
50 mm x 45.6 mm
Displacement:
89.5 cc
No. of Valves:
2
Starting:
Kick Start
Transmission
Transmission:
3 Speed
Misc.
Frame:
pressed steel monocoque
Motorcycle Style:
Step Through
Number Produced:
Many Millions
Place of Manufacture:
Japan
Suspension
Front:
Hydraulically dampened leading link forks
Front Travel:
56 mm
Rear:
Pressed steel swinging arm with 2 shock absorbers
Rear Travel:
61 mm
Add information to the model
All information presented on the website is given to the best of our knowledge at the given time. All information is intended to only as a guide. A major Japanese manufacturer's quote:
We reserve the right to vary our specification with or without notice, and as such time and in such manner as we think fit.
