Spec Sheet

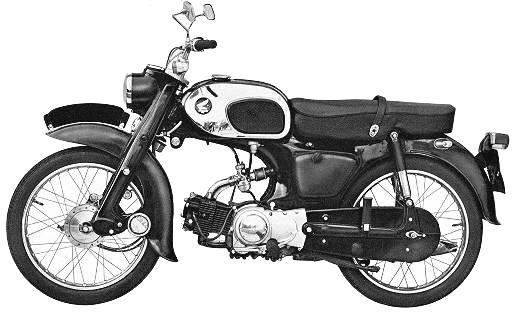

The information below is specific to the Honda - C200 (CA200) 65, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
89
Bike Description:
pressed steel frame with built in rear mudguard, iron pushrod engine, quiet, extremely cheap on petrol but not much good for pulling up tree stumps.
Service
Chain Freeplay mm:
10-20
Coolant:
air
Cooling System (litres):
the whole atmosphere
Engine Oil Grade SAE:
10/40
Engine Oil quantity (litres):
0.9
Engine Oil quantity with filter (litres):
0.9
Fork oil grade:
10w
Idle Speed (rpm):
1500
Points Gap mm:
0.3-0.4
Spark Plugs Gap (mm):
0.6-0.7
Sprocket carrier bearing:
6203
Tyre Pressure Back Bar / psi:
28psi
Tyre Pressure Front Bar / psi:
26psi
Valve Clearance Cold - Exhaust:
0.05mm/0.002inch
Valve Clearance Cold - Inlet:
0.05mm/0.002inch
Brakes
Front:
Drum
Rear:
Drum
Dimensions
Dry Weight:
85kg
Fuel Capacity:
7litres
Ground Clearance:
130mm
Height:
955mm
Length:
1795mm
Wheelbase:
1152mm
Width:
640mm
Electrics
Voltage:
6v
Battery:
6V,6a/h
Bulb-Headlight:
6V,25/25w
Charging System:
generator
Ignition:
coil and points
Spark Plugs:
NGK D-8HS
Engine
Type:
Air Cooled 4 Stroke OHV Single
Air Filtration:
paper element
Bore x Stroke:
50x45.6mm
Carburation:
keihin 18
Carburation Main Jet:
90
Compression Ratio:
8.2:1
Displacement:
89.6cc
Firing Order:
1
Lubrication System:
trochoid pump
No. of Valves:
2
Pilot Screw Setting:
1 3/4
Red line RPM:
9000
Starting:
kick
Valve Train:
pushrod
Transmission
Chain Number of Links:
100
Chain type:
428
Clutch Type:
wet, 2 plate
Gearchange Pattern:
N1234
Gear Ratio 1st:
2.54
Gear Ratio 2nd:
1.61
Gear Ratio 3rd:
1.19
Gear Ratio 4th:
0.96
Primary Drive:
gear
Primary Drive Ratio:
3.00
Sprocket front:
15
Sprocket rear:
40
Transmission:
manual
Misc.
Colour Options:
black,red,white,blue ,green
Frame:
pressed steel monocoque
Motorcycle Style:
COMMUTER
Number Produced:
Many Millions
Place of Manufacture:
japan
Swing Arm:
pressed steel
Power
Fuel Consumption:
over 120mpg
Max Power Output:
7.5 PS/6.5 HP
Max Torque:
5.2 lb/ft @ 6000rpm
Standing 1000m:
thats not the point..
Standing 1/4 mile:
a while..
Top Speed:
59mph
Suspension
Front:
leading link
Rear:
swinging arm
Tyres
Front:
2.50x17
Rear:
2.50x17
Wheels
Bearing Front Left:
6301
Bearing Front Right:
6301
Front:
17
Rear:
17
