Honda - MSX 125 D Grom 13

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
125
Bike Description:
Mini Street X-treme
MSX 125 D Grom Parts and accessories

Service

Chain Freeplay mm:
30 - 40
Engine Oil Classification API:
SG or higher
Engine Oil Grade SAE:
10W-30
Engine Oil quantity with filter (litres):
1.1 litres
Idle Speed (rpm):
1400 + - 100
Spark Plugs Gap (mm):
0.8-0.9 mm
Tyre Pressure Back Bar / psi:
2.0 / 29
Tyre Pressure Back - Pillion Bar / psi:
2.0 / 29
Tyre Pressure Front Bar / psi:
2.0 / 29
Tyre Pressure Front - Pillion Bar / psi:
2.0 / 29

Brakes

Front:
Disc
Rear:
Disc
Brake fluid:
Dot 3 - Dot 4
Front Disc Size:
220 mm
Front-Pistons-per-caliper:
2
Rear Disc Size:
190 mm
Rear-Pistons-per-caliper:
1

Dimensions

Dry Weight:
102 kgs
Fuel Capacity:
5.5 litres
Ground Clearance:
166 mm
Height:
1010 mm
Length:
1760 mm
Seat Height:
765 mm
Wheelbase:
1200 mm
Width:
755 mm

Electrics

Voltage:
12v
Bulb-Headlight:
35/35 w
Main Fuse:
15w

Engine

Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
52.4 mm x 57.9 mm
Carburation:
PGM-FI electronic fuel injection
Compression Ratio:
9.3:1
Displacement:
124.9 cc
Fuel Minimum Octane Rating:
91 ron
No. of Valves:
2
Starting:
Electric

Transmission

Chain Number of Links:
106
Chain type:
420
Clutch Type:
Wet Multiplate
Final Drive:
Chain and Spockets
Gearchange Pattern:
1 Down 3 up
Sprocket front:
15
Sprocket rear:
35
Transmission:
4 Speed

Misc.

Colour Options:

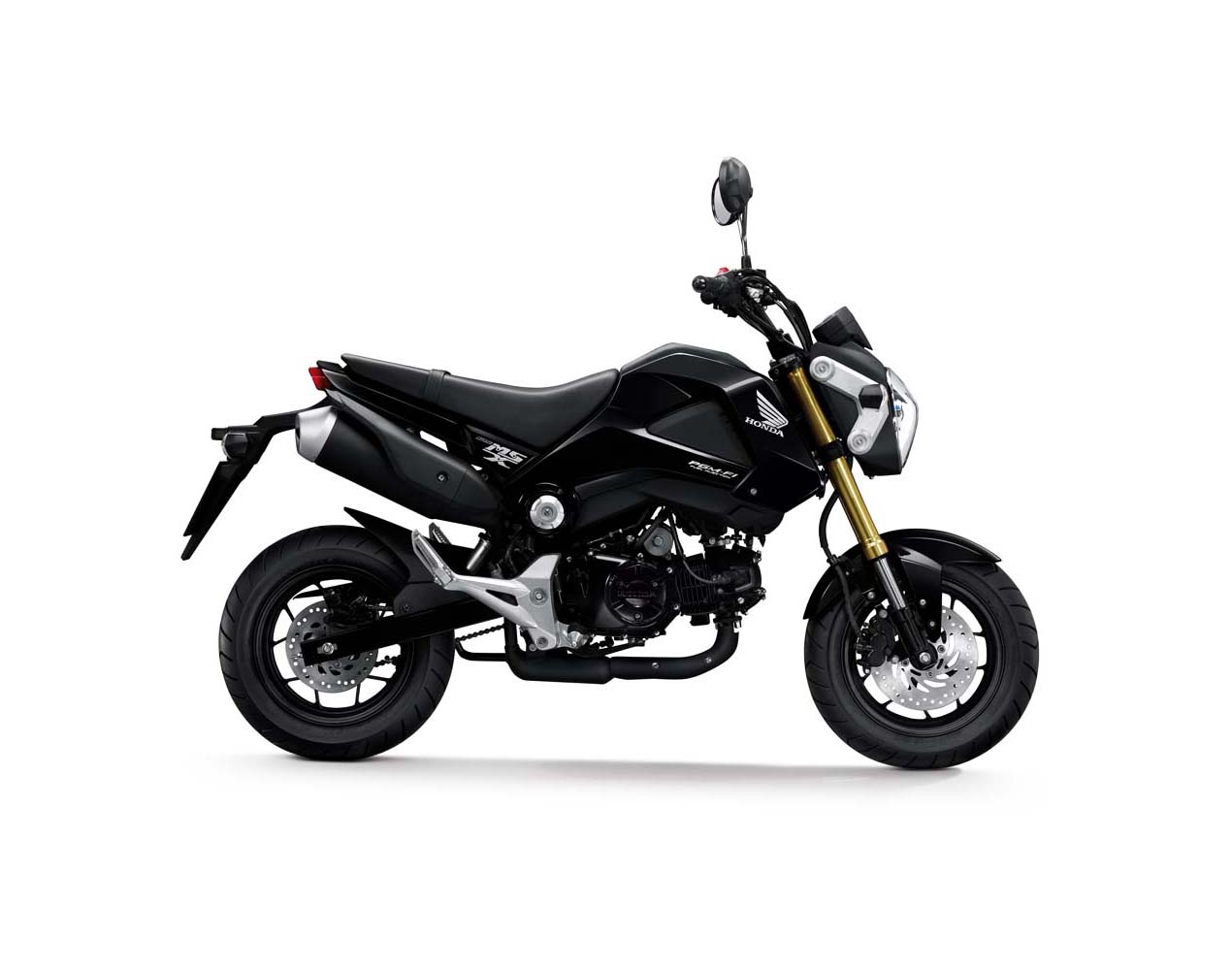

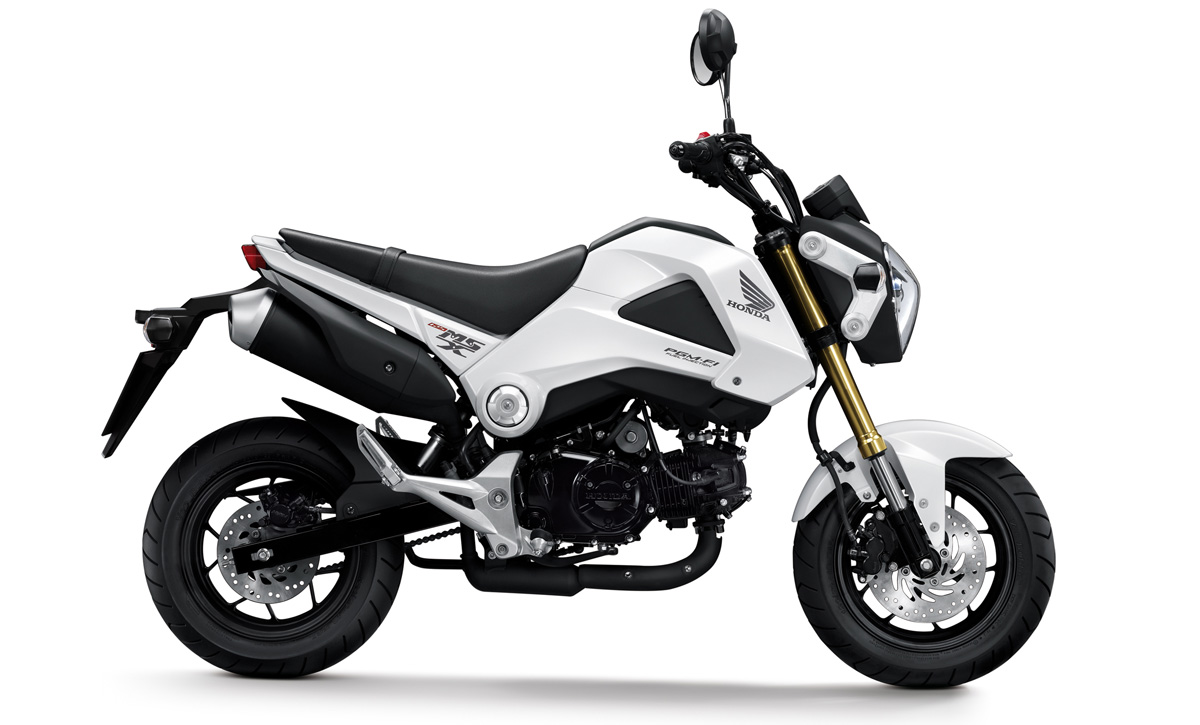

Pearl Valentine Red - Pearl Queen Bee Yellow - Pearl Himalayas White - Asteroid Black Metallic
Frame:
Steel backbone
Place of Manufacture:
Thailand
Swing Arm:
Steel Box Section

Power

Max Power Output:
7.2 kW (10 hp) @ 7000 rpm
Max Torque:
10.9 Nm@5.500 rpm

Suspension

Front:
Front. Inverted fork, 31mm stanchions
Rear:
Monshock

Tyres

Front:
120/70-12
Rear:
130/70-12

Wheels

Front:
12 inch Alloy
Rear:
12 inch Alloy
