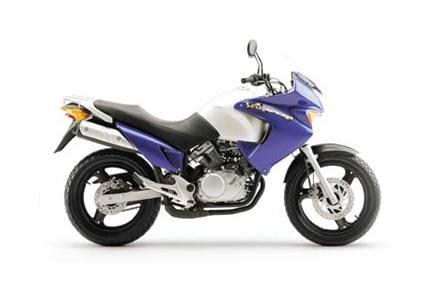

Honda - XL 125 V3 Varadero 03

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
125
XL 125 V3 Varadero Parts and accessories

Service

Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
1.2
Fork oil grade:
10W
Front Fork Oil cc (left leg):
117
Front Fork Oil cc (right leg):
117
Valve Clearance Cold - Exhaust:
0.22-0.26 mm
Valve Clearance Cold - Inlet:
0.13-0.17 mm

Brakes

Front:
Disc
Rear:
Disc
Front Disc Size:
276 x 4mm
Front-Pistons-per-caliper:
2
Rear Disc Size:
220 x 4mm
Rear-Pistons-per-caliper:
1

Dimensions

Height:
1255 mm
Length:
2,140 mm
Seat Height:
800mm
Wheelbase:
1,450mm
Width:
830 mm

Electrics

Voltage:
12
Spark Plugs (Iridium):
NGK CR8EHIX-9


Engine

Type:
Liquid Cooled SOHC V Twin
Bore x Stroke:
42 x 45 mm
Displacement:
125
No. of Valves:
8

Transmission

Chain Number of Links:
112
Sprocket front:
12
Sprocket rear:
44

Misc.

Motorcycle Style:
Dual Sport/Adventure

Suspension

Front:
35mm telescopic fork
Rear:
Monoshock swingarm
Rear Travel:
150mm

Tyres

Front:
100/90-18M/C (56P)
Rear:
130/80-H17 Tubeless
