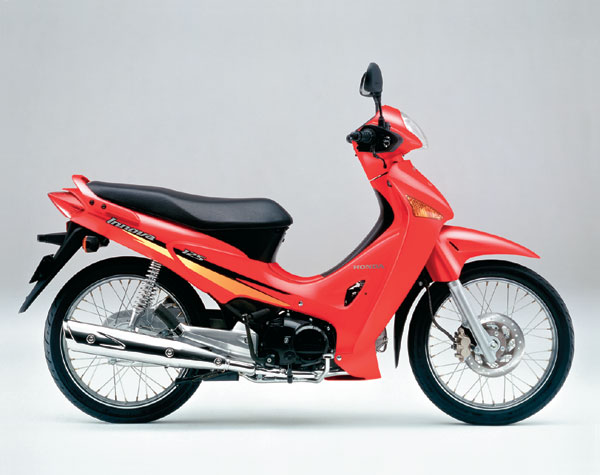

Honda - ANF 125-3 Innova 03

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
125
Chassis info:
MLHJC33A525
ANF 125-3 Innova Parts and accessories

Service

Engine Oil quantity with filter (litres):
0.8
Fork oil grade:
10W
Idle Speed (rpm):
1400

Brakes

Front:
Disc
Rear:
Drum
Front Disc Size:
220 mm
Front-Pistons-per-caliper:
2

Dimensions

Fuel Capacity:
3.7 litres
Height:
1083 mm
Length:
1890 mm
Rake:
26
Seat Height:
768 mm
Trail:
73.3 mm
Wet Weight:
104.2 kg
Wheelbase:
1240 mm
Width:
727 mm

Electrics

Voltage:
12v
Battery:
12V/5AH
Bulb-Headlight:
12V, 35W x 1 (low) / 35W x 1 (high)
Ignition:
Discharge (CDI) with electronic advance
Spark Plugs:
CPR6EA-9 (NGK); U20EPR9 (ND)

Engine

Type:
Air Cooled 4 Stroke SOHC Single
Air Filtration:
Dry, cartridge-type paper filter
Bore x Stroke:
52.4 x 57.9 mm
Carburation:
18mm APB-type
Compression Ratio:
9.3:1
Displacement:
124.9 cc
Starting:
Electric/Neutral kick


Transmission

Chain Number of Links:
104
Clutch Type:
Centrifugal; automatic
Final Drive:
Enclosed roller chain
Gear Ratio 1st:
2.500 (35/14)
Gear Ratio 2nd:
1.550 (31/20)
Gear Ratio 3rd:
1.150 (23/20)
Gear Ratio 4th:
0.923 (24/26)
Sprocket front:
14
Sprocket rear:
35
Transmission:
4-speed; rotary

Misc.

Colour Options:
Force silver, asteroid black, candy lighting blue, millennium red
Motorcycle Style:
Step Through

Power

Max Power Output:
6.65kW/7,500min-1 (95/1/EC)
Max Torque:
10Nm/5,000min-1 (95/1/EC)

Suspension

Front:
telescopic fork, 80.5mm axle travel
Rear:
Dual damper unit swingarm, 81.6mm axle travel

Tyres

Front:
70/100-17 Tubed
Rear:
80/90-17 Tubed

Wheels

Front:
17 x 1.40
Rear:
17 x 1.40
