Spec Sheet

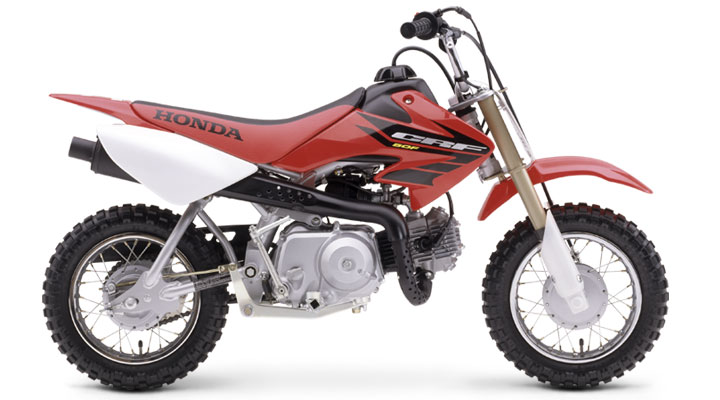

The information below is specific to the Honda - CRF 50 F4 04, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
50
Brakes
Front:
Drum
Rear:
Drum
Dimensions
Fuel Capacity:
0.8 gallon, including reserve
Reserve Fuel Capacity:
0.2 gallon
Electrics
Ignition:
CDI
Spark Plugs:
NGK CR6HSA
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
39 x 41.4mm
Carburation:
13mm piston-valve
Compression Ratio:
10:1
Displacement:
49 cc
No. of Valves:
2
Starting:
Kick
Transmission
Chain Number of Links:
78
Chain type:
420
Clutch Type:
Automatic Clutch
Final Drive:
Chain
Sprocket front:
14
Sprocket rear:
37
Transmission:
3 Speed Automatic Clutch
Misc.
Motorcycle Style:
Off Road
Tyres
Front:
250-10 Tubed
Rear:
250-10 Tubed
Wheels
Front:
10inch 28-spoke with die-cast-aluminum hubs
Rear:
10inch 28-spoke with die-cast-aluminum hubs
