Honda - MTX 125 RWD 83

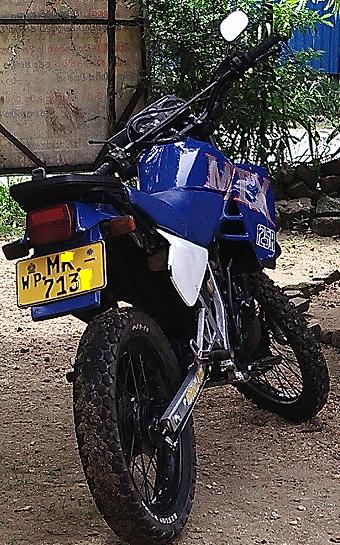

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
125
MTX 125 RWD Parts and accessories

Brakes

Front:
Disc
Rear:
Drum

Electrics

Voltage:
12v
Spark Plugs:
BR9ES
Spark Plugs (Iridium):
NGK BR8EIX

Engine

Type:
Liquid Cooled 2 Stroke Reed Valve Inline Single
Bore x Stroke:
56 х 50.6 mm
Carburation:
24mm Keihin carb
Compression Ratio:
7.6:1
Displacement:
124 cc

Transmission

Chain Number of Links:
130
Chain type:
428
Sprocket front:
15
Sprocket rear:
53


Misc.

Motorcycle Style:
ENDURO ROAD/TRAIL
Place of Manufacture:
JAPAN

Power

Max Power Output:
18.1 hp @ 8700 rpm
Max Torque:
1.6 kg-m @ 7200 rpm

Suspension

Front:
Air adjustable hydraulic forks
Front Travel:
230 mm
Rear:
Pro-link Monoshock
Rear Travel:
200 mm

Tyres

Front:
275-21 Tubed
Rear:
410-18 Tubed

Wheels

Front:
21 INCH
Rear:
18 INCH
