Spec Sheet
The information below is specific to the Harley Davidson - XL 1200 C Sportster Custom 13, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

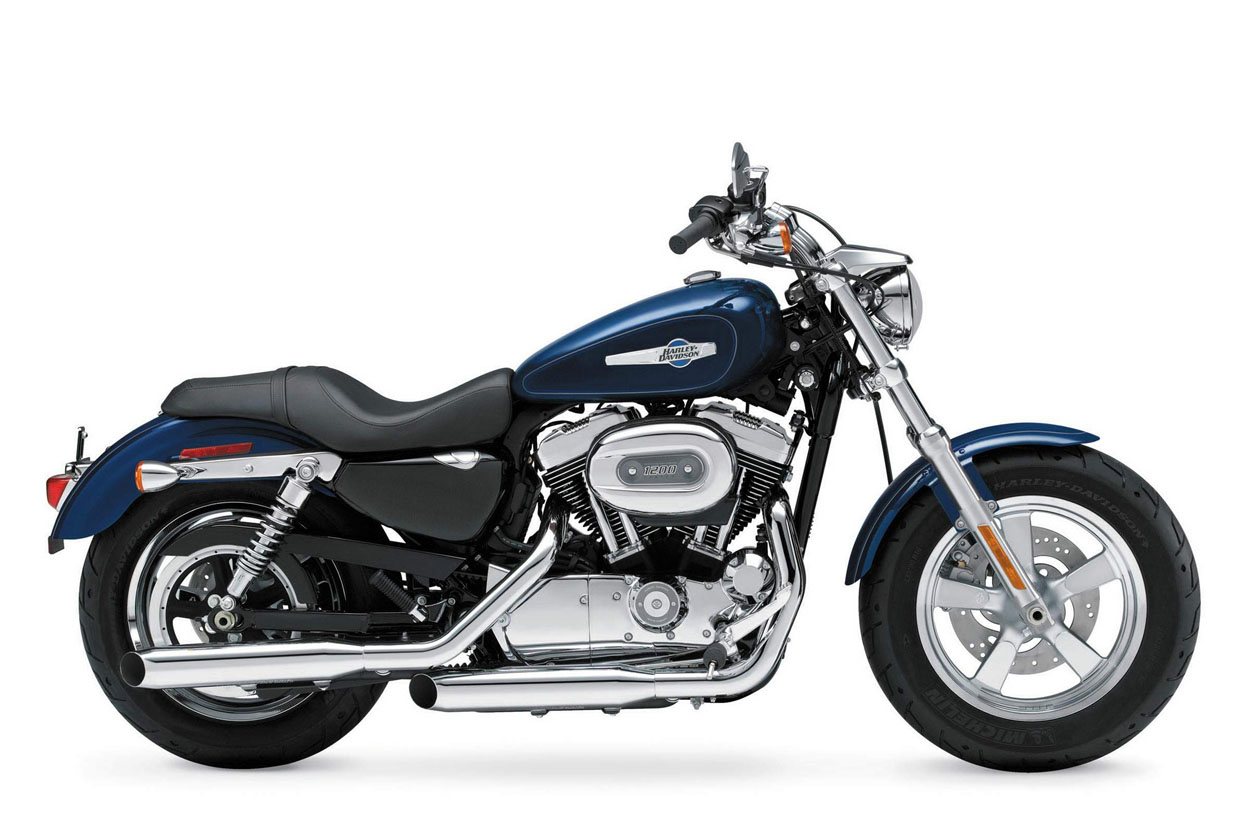

Back.Harley Davidson - XL 1200 C Sportster Custom 13
Bike Info
CC:
1200
Service
Engine Oil Grade SAE:
20w50
Engine Oil quantity with filter (litres):
2.6
Gearbox Oil Litres:
.946
Oil Filter Part Number:
PF-171B
Spark Plugs Gap (mm):
1.0
Brakes
Front:
Disc
Rear:
Disc
Brake fluid:
dot 4
Electrics
Voltage:
12v
Spark Plugs:
DCPR7E
Engine
Type:
Air Cooled 4 Stroke V Twin
Transmission
Final Drive:
Belt
Tyres
Front:
130/90-B16
