Spec Sheet

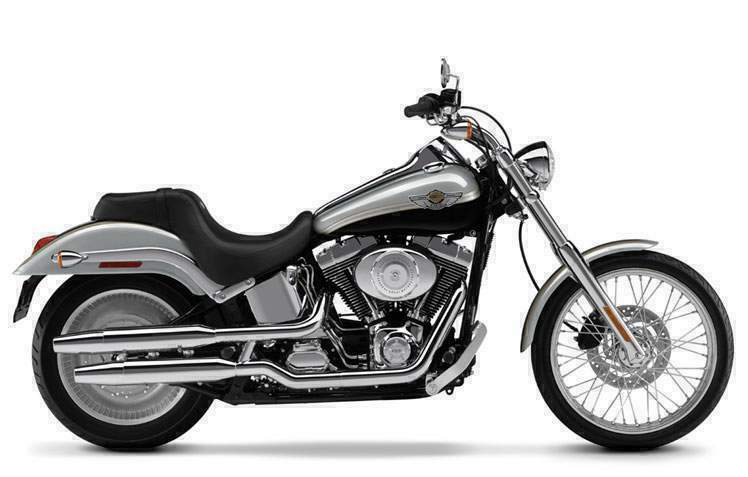

The information below is specific to the Harley Davidson - FXSTD 1450 Softail Deuce 00, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1450
Service
Chain Freeplay mm:
8,5 - 9,5mm
Coolant:
air cooled
Engine Oil Grade SAE:
20w/50
Engine Oil quantity with filter (litres):
3,3 with filter change
Float Height:
10,5 -11,5 mm
Fork oil grade:
SAE 10W
Front Fork Oil cc (left leg):
343cc
Front Fork Oil cc (right leg):
343cc
Gearbox Oil Litres:
0,6 - 0,70
Idle Speed (rpm):
900-1000 rpm
Spark Plugs Gap (mm):
1,0 mm
Transmission oil quantity:
0,90 L
Tyre Pressure Back Bar / psi:
2,5 / 36 - 2,7 / 40
Tyre Pressure Front Bar / psi:
2,1 / 30
Valve Adjustment Interval:
no adjustements
Valve Clearance Cold - Exhaust:
Hidraulic - no adjustements
Valve Clearance Cold - Inlet:
Hidraulic - no adjustements
Brakes
Front:
Disc
Rear:
Disc
Dimensions
Wet Weight:
292,4 Kg
Electrics
Voltage:
12v
Battery:
YTX20L-BS
Spark Plugs:
NGK DCPR7E / HD 6R12
Engine
Type:
Air Cooled 4 Stroke V Twin
Bore x Stroke:
95,3mm X 101,6mm
Carburation Idle Jet:
45
Carburation Main Jet:
190
Displacement:
1450cc
Firing Order:
1 - 2
No. of Valves:
2
Valve Train:
Twin cams
Transmission
Chain Number of Links:
Belt 135T
Chain type:
Belt drive
Sprocket front:
32
Sprocket rear:
70
Misc.
Motorcycle Style:
Custom cruiser
Place of Manufacture:
Milwaukee. U.S.A
Tyres
Front:
MH90-21
Rear:
160/70-17
