Spec Sheet

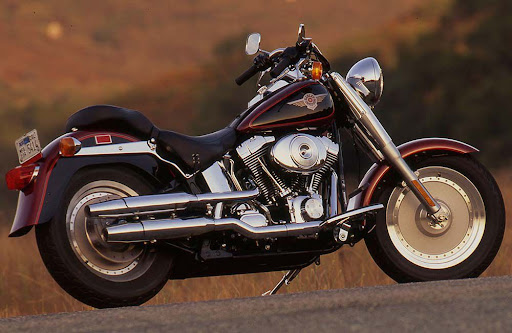

The information below is specific to the Harley Davidson - FLSTF/FLSTFi 1584 Fat Boy 00, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1584
Chassis info:
front fork oil capacity
Service
Engine Oil Grade SAE:
20w/50
Brakes
Front-Pistons-per-caliper:
4
Rear-Pistons-per-caliper:
4
Dimensions
Fuel Capacity:
18 litres
Ground Clearance:
129 mm
Length:
2476 mm
Rake:
26°
Seat Height:
779 mm
Trail:
6.2 in. (157.5 mm)
Wet Weight:
356 kg
Wheelbase:
1612 mm
Electrics
Voltage:
12v
Engine
Type:
Air Cooled 4 Stroke DOHC V Twin
Bore x Stroke:
3.75 x 4.38 in. (95.18 x 111.13 mm)
Carburation:
Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio:
9.2:1
Displacement:
96 ci (1,584 cc)
Transmission
Clutch Type:
Multi-plate with diaphragm spring in oil bath
Final Drive:
Chain
Gear Ratio 1st:
9.312
Gear Ratio 2nd:
6.421
Gear Ratio 3rd:
4.774
Gear Ratio 4th:
3.926
Gear Ratio 5th:
3.279
Gear Ratio 6th:
2.790
Transmission:
6-speed
Misc.
Motorcycle Style:
Custom cruiser
Power
Max Torque:
92.6 ft. lbs. (125.5 Nm) @ 3,500 rpm
Tyres
Front:
140/75R17 67V
Rear:
200/55R17 78V
Wheels
Front:
Silver Cast Aluminum Bullet Hole Disc
Rear:
Silver Cast Aluminum Bullet Hole Disc
Add information to the model
All information presented on the website is given to the best of our knowledge at the given time. All information is intended to only as a guide. A major Japanese manufacturer's quote:
We reserve the right to vary our specification with or without notice, and as such time and in such manner as we think fit.
