Spec Sheet

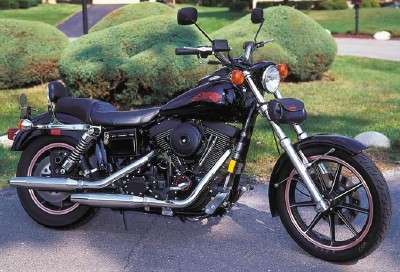

The information below is specific to the Harley Davidson - FXDB 1340 Sturgis/Daytona 91, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1340
Service
Engine Oil Grade SAE:
20w/50
Brakes
Front:
Disc
Rear:
Disc
Front Disc Size:
292 mm
Rear Disc Size:
292 mm
Dimensions
Dry Weight:
271 kgs
Fuel Capacity:
18.9 litres
Ground Clearance:
142 mm
Length:
2388 mm
Seat Height:
675 mm
Wheelbase:
1664 mm
Electrics
Voltage:
12v
Battery:
19 A/H
Ignition:
Electronic
Spark Plugs (Iridium):
NGK BPR5EIX
Engine
Type:
Air Cooled 4 Stroke V Twin
Bore x Stroke:
88.8 x 108mm
Carburation:
40 mm Keihin CV
Displacement:
1340 cc
No. of Valves:
4 - 2 valve heads
Starting:
ElectriC
Transmission
Final Drive:
Belt
Transmission:
5 Speed
Misc.
Frame:
Steel Box Section - Dyna Glide chassis with twin downtube
Motorcycle Style:
Custom cruiser
Place of Manufacture:
Milwaukee. U.S.A
Suspension
Front:
Air Assisted Forks
Rear:
Twin Shocks
Tyres
Front:
90/90-19
Rear:
80/90-16
