Spec Sheet
The information below is specific to the Haotian - Arrow HT125-4F 10, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

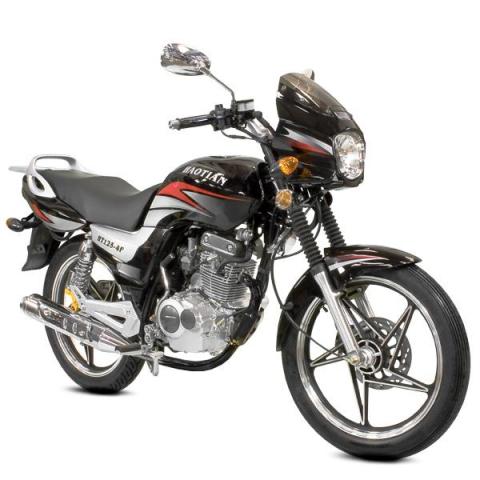

Back.Haotian - Arrow HT125-4F 10
Bike Info
CC:
125
Bike Description:
EEC Type Approval No.: e4*2002/24*0678*02
Engine Brand: 157FMI
Service
Engine Oil Grade SAE:
15W/40
Brakes
Front:
Disc
Rear:
Drum
Dimensions
Dry Weight:
138 kg
Height:
1060 mm
Length:
2035 mm
Wheelbase:
1285 mm
Width:
725 mm
Electrics
Voltage:
12v
Ignition:
CDI
Spark Plugs:
NGK D8EA
Engine
Type:
4 Stroke OHV V Single
Bore x Stroke:
56.5 x 49.5mm
Displacement:
124 cc
No. of Valves:
2
Starting:
Electric / Kick Start
Transmission
Chain type:
428
Clutch Type:
Wet multiplate
Final Drive:
Chain and Sprocket
Transmission:
5 Speed
Misc.
Place of Manufacture:
China
Tyres
Front:
2.75-18
Rear:
90/90-18
