Spec Sheet
The information below is specific to the Triumph (Meriden) - TR6 65, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

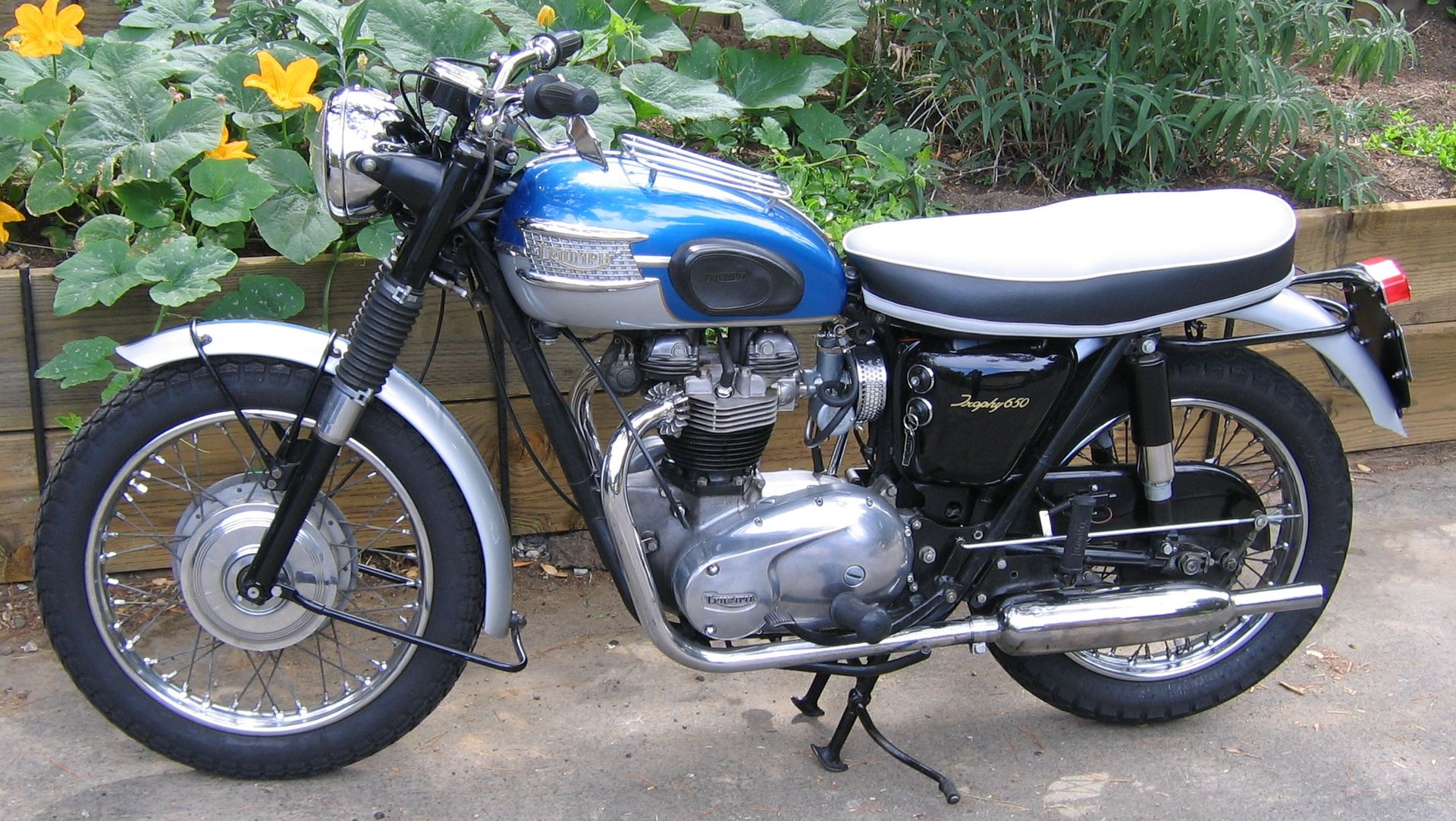

Back.Triumph Meriden - TR6 65
Bike Info
CC:
650
Brakes
Front:
Drum
Rear:
Drum
Front Drum Size:
20.32cm
Rear Drum Size:
17.78cm
Dimensions
Dry Weight:
365 lb
Fuel Capacity:
4 gallons
Length:
214cm
Seat Height:
82.5cm
Wet Weight:
380 lb
Wheelbase:
140cm
Width:
82.5cm
Electrics
Ignition:
Lucas Magneto
Engine
Type:
Air Cooled 4 Stroke OHV Parallel Twin
Bore x Stroke:
71 x 82mm
Carburation:
Amal Monobloc 389
Carburation Main Jet:
310
Compression Ratio:
8.5:1
Displacement:
649cc
No. of Valves:
4 - 2 valves per cylinder
Starting:
Kick
Valve Train:
Pushrod
Transmission
Chain Number of Links:
84
Clutch Type:
Wet,Multi Plate
Gear Ratio 1st:
8.17:1
Gear Ratio 2nd:
6.76:1
Gear Ratio 3rd:
5.84:1
Primary Drive:
Chain
Sprocket front:
19 tooth
Sprocket rear:
47 tooth
Transmission:
4-speed
Misc.
Frame:
Brazed lug, full-cradle, single downtube
Place of Manufacture:
Meriden Birmingham UK
Power
Max Power Output:
42hp
Suspension
Front:
Telescopic fork, hydraulic damping
Rear:
Swingarm, 2 x Girling Dampers
Tyres
Front:
3.25 x 19
Rear:
4.00 x 18
