Spec Sheet

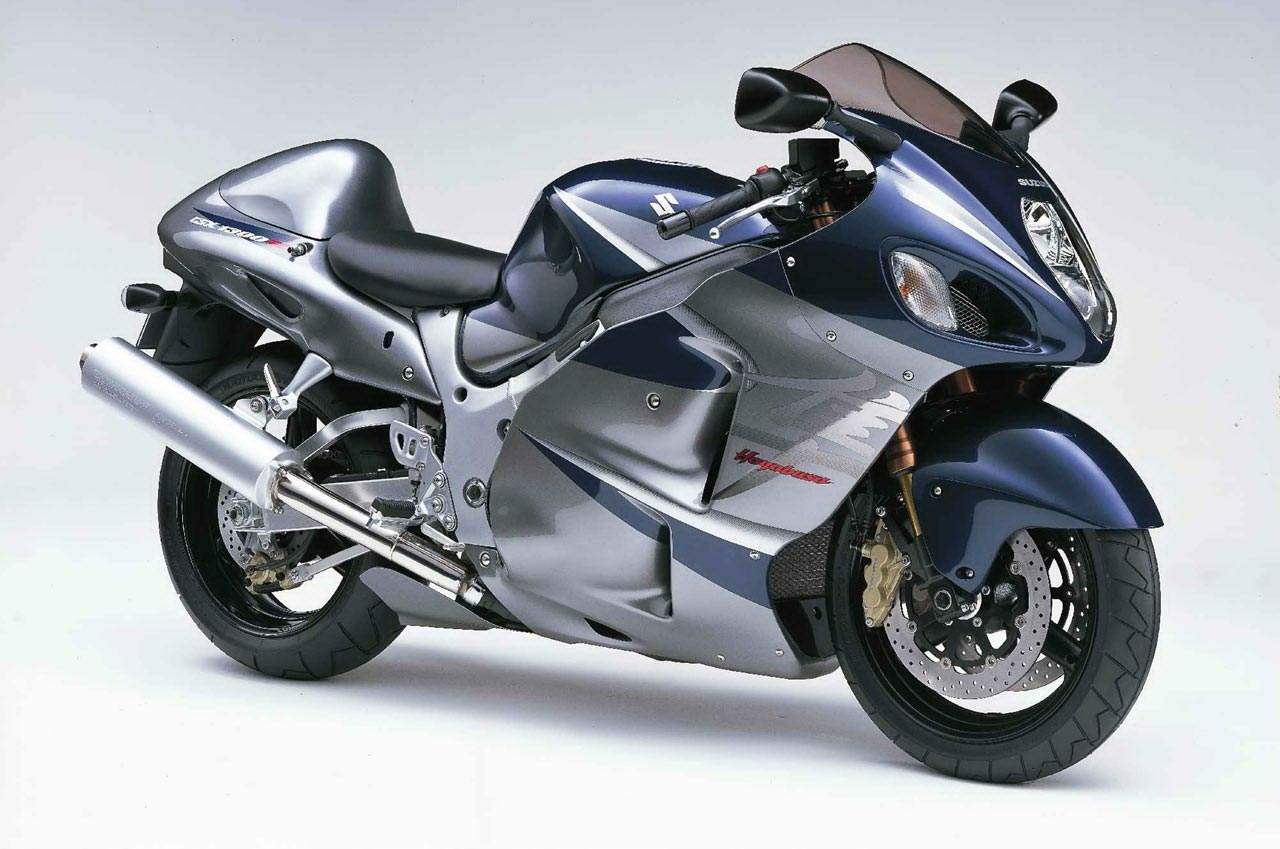

The information below is specific to the Suzuki - GSX 1300 RK6 Hayabusa 06, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1300
Service
Chain Freeplay mm:
20-30
Coolant:
3.0 Litres
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
3.50
Idle Speed (rpm):
1150 +- 100
Spark Plugs Gap (mm):
0.7 - 0.8
Tyre Pressure Back Bar / psi:
2.9 - 42
Tyre Pressure Front Bar / psi:
2.9 - 42
Valve Clearance Cold - Exhaust:
0.20 - 0.30 mm
Valve Clearance Cold - Inlet:
0.10 - 0.20 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Brake fluid:
DOT 4
Dimensions
Dry Weight:
215 kg
Ground Clearance:
120 mm
Height:
1155 mm
Length:
2140 mm
Seat Height:
805 mm
Wheelbase:
1485 mm
Width:
740 mm
Electrics
Voltage:
12v
Spark Plugs (Iridium):
NGK CR9EIX
Engine
Type:
Liquid Cooled 4 Stroke DOHC Straight Four
Bore x Stroke:
81 x 63 mm
Displacement:
1298 cc
Firing Order:
1-2-4-3
No. of Valves:
16
Transmission
Clutch Type:
Wet multi plate
Misc.
Fuel Control:
Fuel Injection
Motorcycle Style:
Sports
Power
Max Power Output:
175hp@9800rpm
Max Torque:
141Nm@7000rpm
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
190/50-ZR17 Tubeless
Add information to the model
