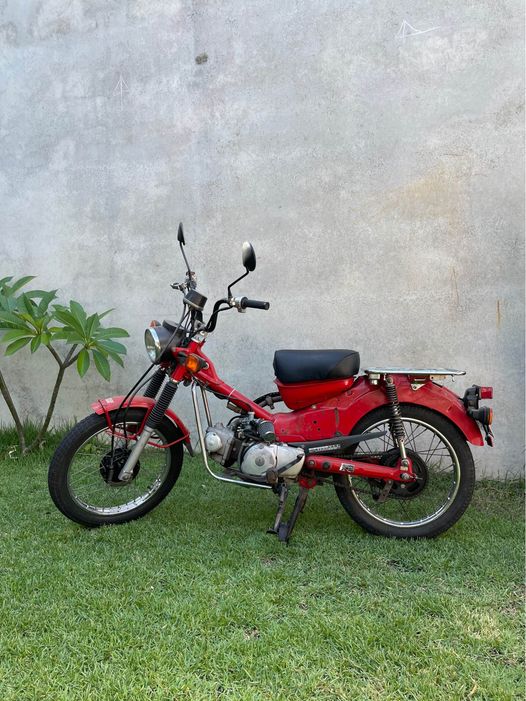

Honda - CT 110 P 00

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
110
CT 110 P Parts and accessories

Service

Chain Freeplay mm:
15 - 25 mm
Engine Oil Classification API:
sg
Engine Oil Grade SAE:
10w/40
Engine Oil quantity with filter (litres):
0.9
Front Fork Oil cc (left leg):
135
Front Fork Oil cc (right leg):
135
Idle Speed (rpm):
1500 - 1600
Spark Plugs Gap (mm):
0.6 - 0.7
Tyre Pressure Back Bar / psi:
32
Tyre Pressure Front Bar / psi:
24
Valve Clearance Cold - Exhaust:
0.05 mm
Valve Clearance Cold - Inlet:
0.05 mm

Brakes

Front:
Drum

Dimensions

Wet Weight:
89 kg

Electrics

Voltage:
6v
Battery:
6N4-2A-8
Ignition:
CDI
Spark Plugs:
D8ES-L

Engine

Type:
Air Cooled 4 Stroke SOHC Flat Single
Bore x Stroke:
52 x 49.5 mm
Carburation:
Keihin
Displacement:
105 cc
Fuel Minimum Octane Rating:
91

Transmission

Chain Number of Links:
104
Chain type:
DID 428D
Sprocket front:
15
Sprocket rear:
45

Misc.

Motorcycle Style:
Step Through

Power

Max Power Output:
5.5kw(7.5hp) @ 7500 rpm

Tyres

Front:
275-17 Tubed
Rear:
275-17 Tubed
