Spec Sheet

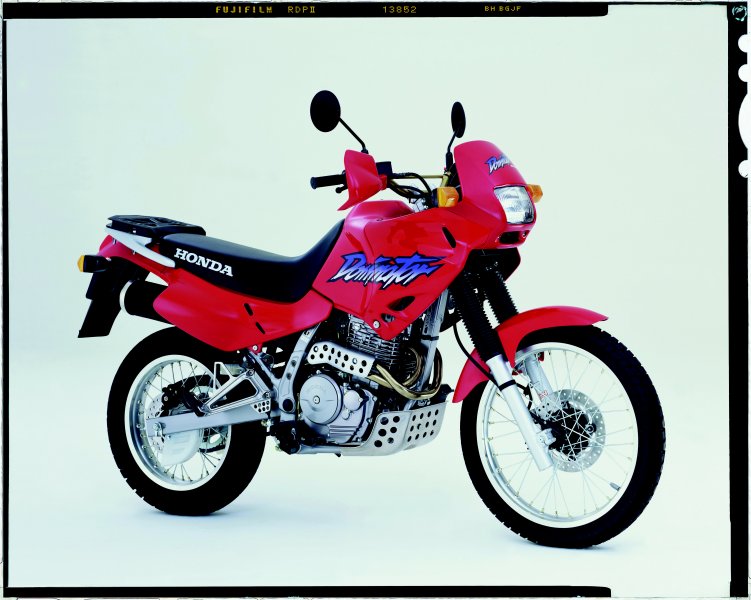

The information below is specific to the Honda - NX 650 R-1 Dominator RD08 (Brembo Front Caliper) 01, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
650
Service
Engine Oil Classification API:
SE
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
1.95
Idle Speed (rpm):
1300 +- 100
Spark Plugs Gap (mm):
0.8 - 0.9
Tyre Pressure Back Bar / psi:
1.5 - 22
Tyre Pressure Back - Pillion Bar / psi:
2.0 - 29
Tyre Pressure Front Bar / psi:
1.5 - 22
Valve Clearance Cold - Exhaust:
0.12 mm
Valve Clearance Cold - Inlet:
0.10 mm
Brakes
Front:
Disc
Rear:
Disc
Brake fluid:
DOT-4
Electrics
Voltage:
12v
Ignition:
DC-CDI
Spark Plugs (Iridium):
NGK DPR8EIX-9
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Air Filtration:
Paper filter
Bore x Stroke:
100 x 82 mm
Compression Ratio:
8.3:1
Displacement:
644cc
No. of Valves:
4
Starting:
Electric
Transmission
Chain Number of Links:
110
Gear Ratio 1st:
2.666
Gear Ratio 2nd:
1.750
Gear Ratio 3rd:
1.250
Gear Ratio 4th:
1.000
Gear Ratio 5th:
0.840
Sprocket front:
14
Sprocket rear:
44
Transmission:
5-speed
Misc.
Motorcycle Style:
Dual Sport/Adventure
Place of Manufacture:
Italy
Tyres
Front:
90/90-S21 Tubed
Rear:
120/90-S17 Tubed
