Spec Sheet

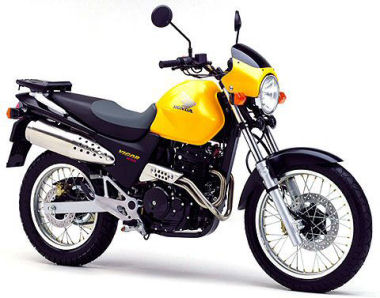

The information below is specific to the Honda - FX 650 Vigor 03, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
650
Service
Chain Freeplay mm:
25mm
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W-40
Engine Oil quantity with filter (litres):
2.2
Front Fork Oil cc (left leg):
573
Front Fork Oil cc (right leg):
573
Idle Speed (rpm):
1300 +- 100
Spark Plugs Gap (mm):
0.8 - 0.9
Tyre Pressure Back Bar / psi:
1.7 / 25
Tyre Pressure Back - Pillion Bar / psi:
2.0 / 29
Tyre Pressure Front Bar / psi:
1.2 / 22
Tyre Pressure Front - Pillion Bar / psi:
1.2 / 22
Valve Clearance Cold - Exhaust:
0.10 mm
Valve Clearance Cold - Inlet:
0.10 mm
Brakes
Front:
Disc
Rear:
Disc
Dimensions
Dry Weight:
161 kg
Wheelbase:
1440 m
Electrics
Voltage:
12v
Spark Plugs:
NGK DPR8EA-9
Spark Plugs (Iridium):
NGK DPR8EIX-9
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
100 x 82 mm
Carburation:
Keihin VEEAG or VEEAK
Carburation Main Jet:
165
Displacement:
644 cc
Lubrication System:
Dry Sump, Oil in Frame
No. of Valves:
4
Red line RPM:
6750
Starting:
Electric
Transmission
Chain Number of Links:
108
Chain type:
520
Sprocket front:
14
Sprocket rear:
43
Misc.
Motorcycle Style:
Dual Sport/Adventure
Power
Max Power Output:
39 bhp
Max Torque:
40 lb-ft
Tyres
Front:
100/90-19 Tubed
Rear:
120/90-S17 Tubed
